Blower Motor Resistor Removal and Installation
Precautions: General safety (00)
Removal
1)Disconnect negative (–) cable at battery.
2)Remove passenger side instrument panel undercover (1).
3)Remove glove box.

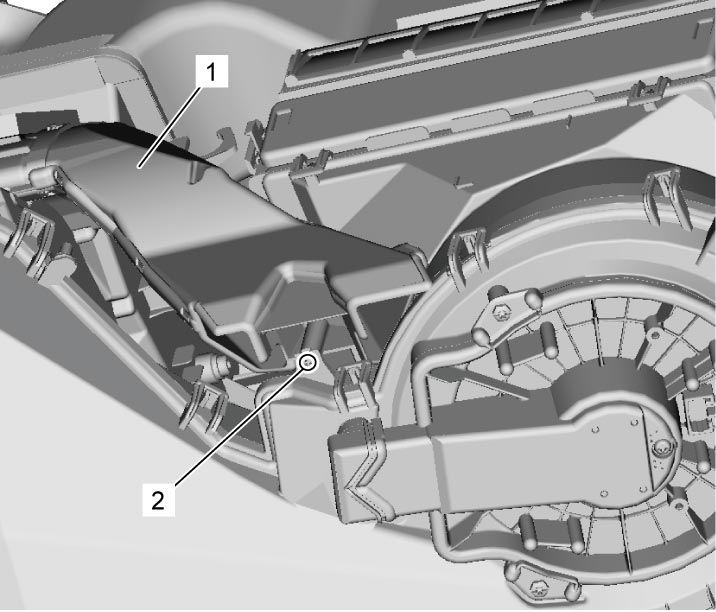

4)Remove passenger side foot duct (1) from HVAC unit by removing screw (2).

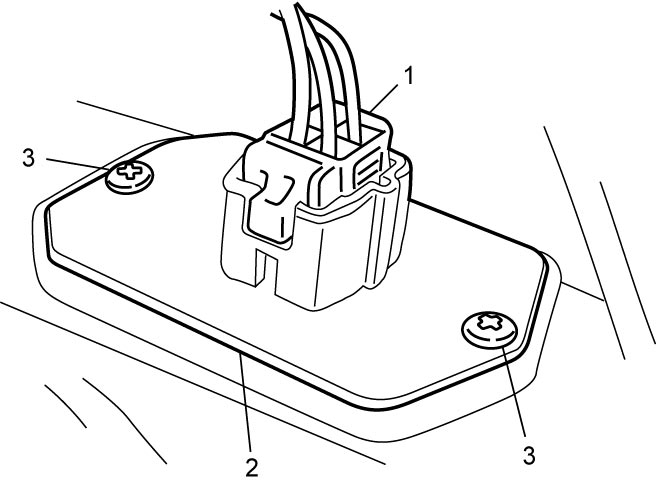

5)Disconnect connector (1) from blower motor resistor (2), and then remove blower motor resistor from HVAC unit by removing screws (3).
Installation
Reverse removal procedure.
