Suzuki Vitara (LY) 2016-2017 · Service Manual Manual Type · Schematic and Routing Diagram

Contents › 7B HVAC System › Manual Type › Schematic and Routing Diagram

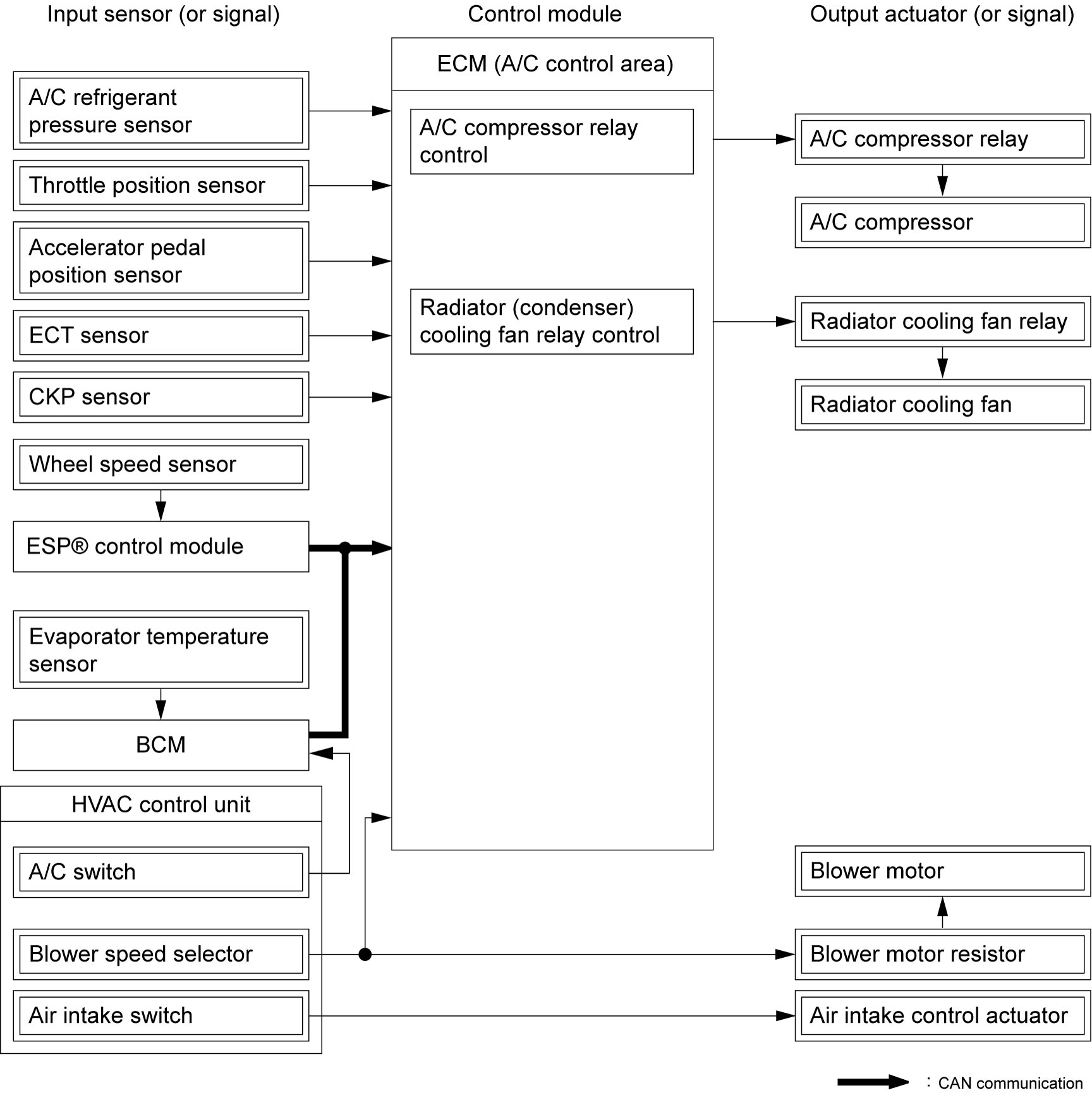

Manual A/C Electronic Control Input / Output Block Diagram

Precautions: General safety (00)

← OBD System Description (Additional Heater System)Additional Heater (If Equipped) Electronic Control Input / Output Block Diagram →
