HVAC Air Filter Removal and Installation
Precautions: General safety (00)
Removal
1)Remove glove box.

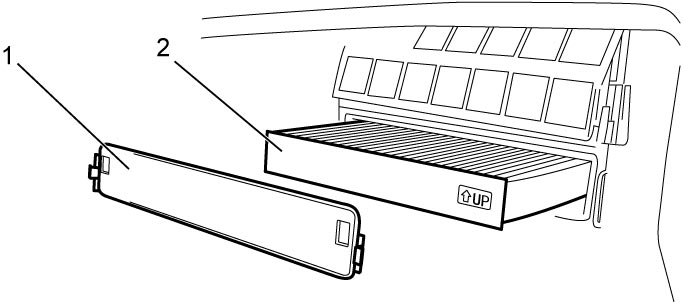

2)Remove HVAC air filter cover (1) from HVAC unit.
3)Remove air filter (2) from HVAC unit.
Installation
Reverse removal procedure noting the following point.

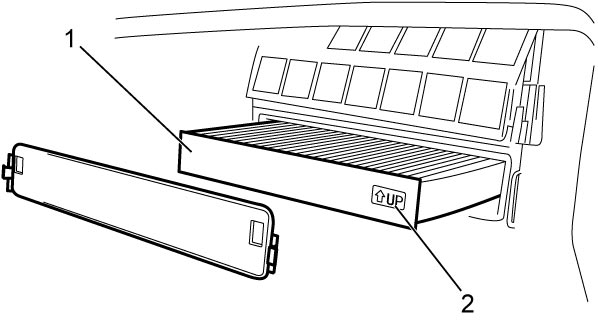

•Position air filter (1) directing its arrow mark (2) upward.
