A/C Switch Inspection
Precautions: General safety (00)

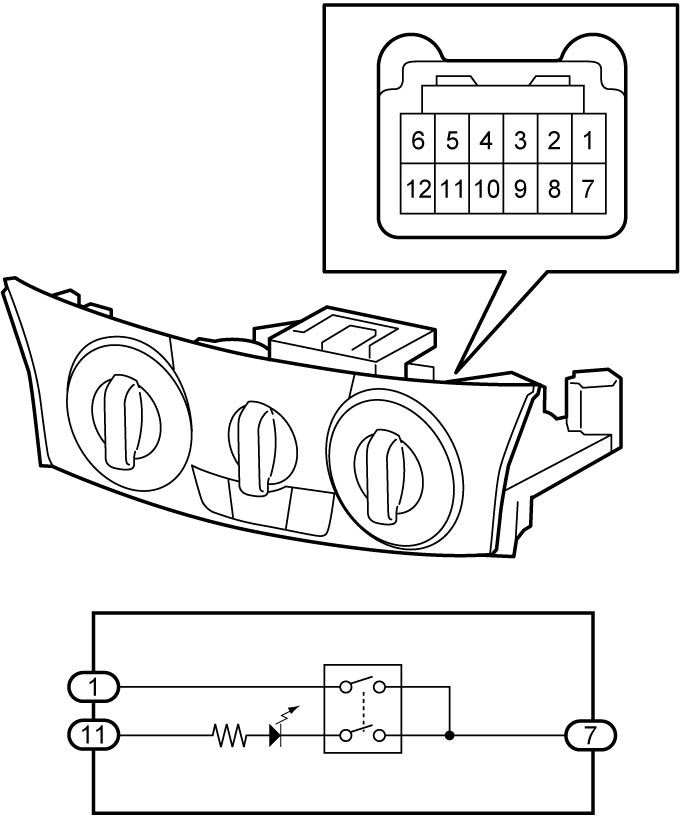

Check A/C switch for terminal-to-terminal continuity. If check result is not as specified, replace HVAC control unit.
NOTE:
To perform measurement with A/C switch to “ON”, use diode range of circuit tester.

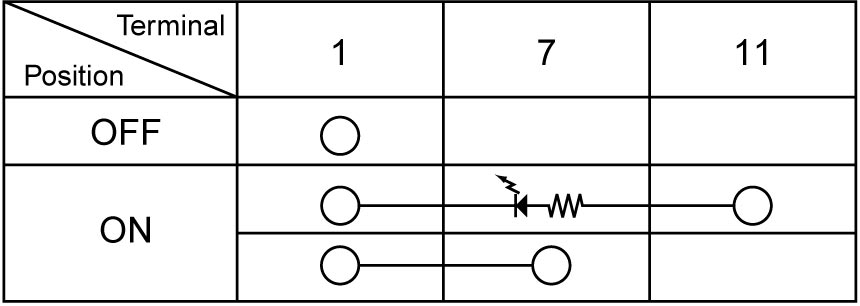

A/C switch continuity
