7B HVAC System
› Automatic Type › Schematic and Routing Diagram

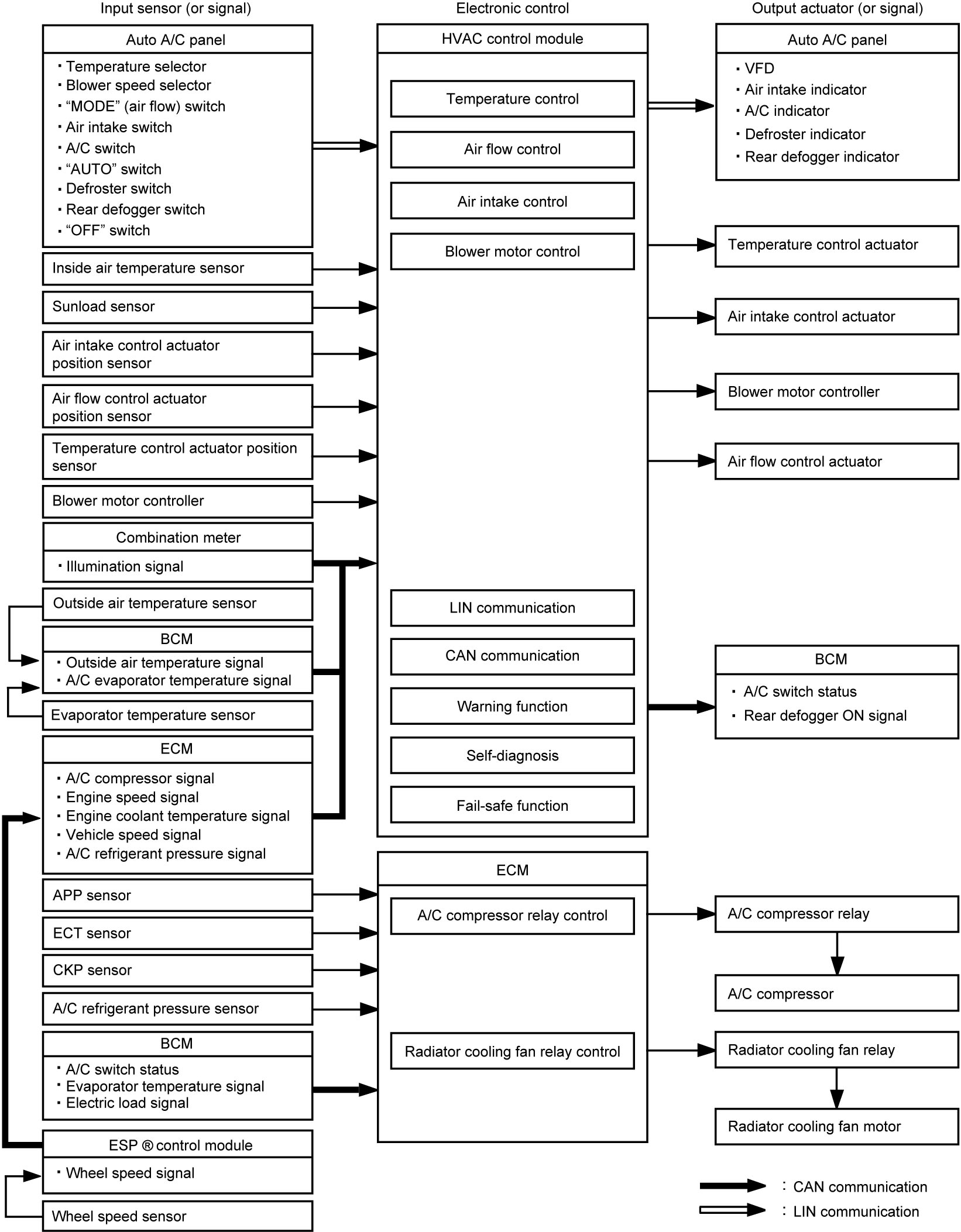

Auto A/C Electronic Control Input / Output Block Diagram
