HVAC Unit Components
Precautions: Precautions for Diagnosing Trouble · General safety (00)
NOTE:
This figure shows LHD as an example.

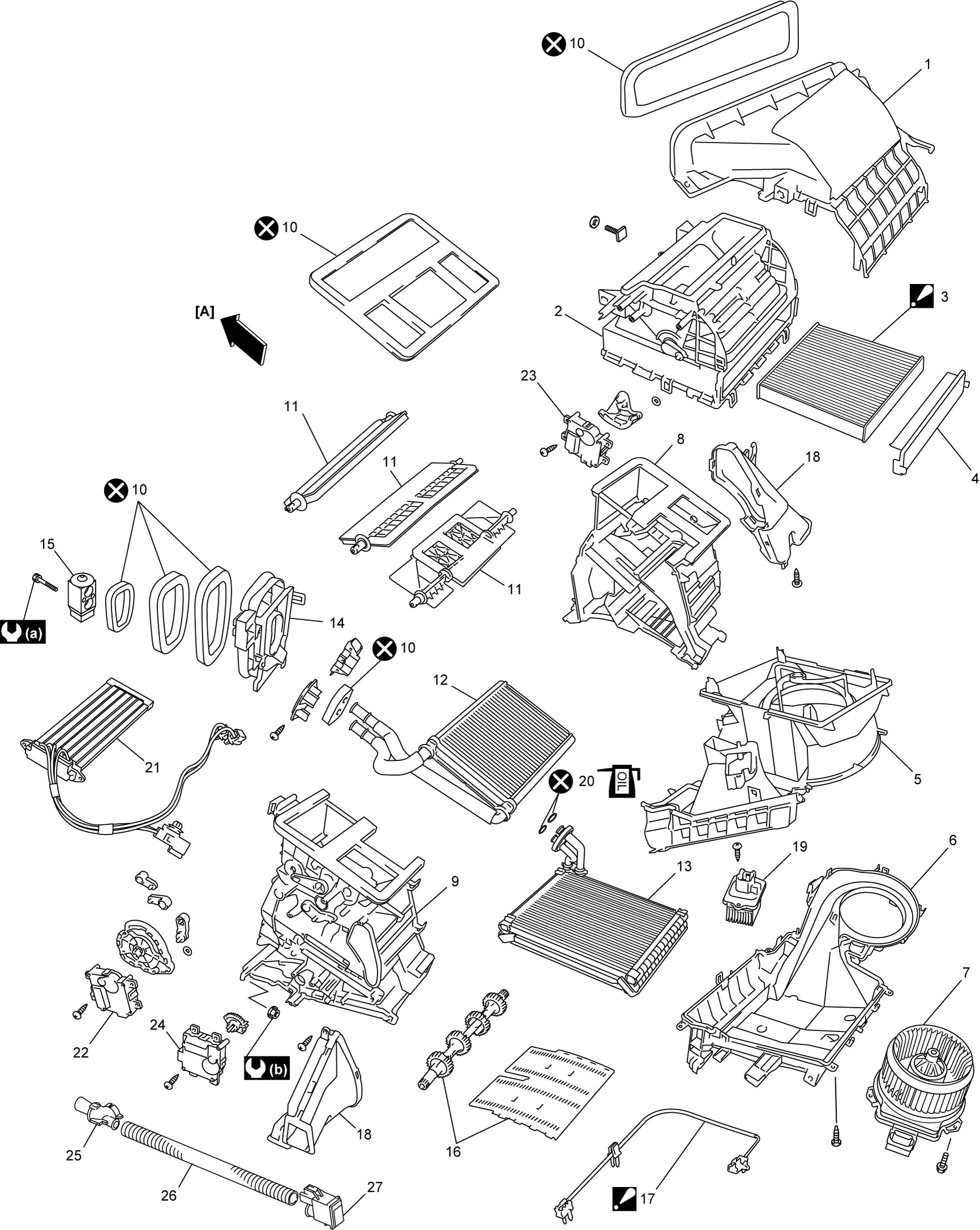

| [A]: | Forward | 11. | Air flow control door assembly | 22. | Air flow control actuator |
| 1. | Fresh air inlet duct | 12. | Heater core | 23. | Air intake control actuator |
| 2. | Air intake case | 13. | Evaporator | 24. | Temperature control actuator |
 3. |
Air filter : For installation, refer to HVAC Air Filter Removal and Installation:Automatic Type. |
14. | Cover | 25. | Aspirator |
| 4. | Filter cover | 15. | Expansion valve | 26. | Aspirator hose |
| 5. | Blower upper case | 16. | Temperature control door assembly | 27. | Inside air temperature sensor |
| 6. | Blower lower case |
17. |
Evaporator temperature sensor : For installation, refer to Evaporator Temperature Sensor Removal and Installation:Automatic Type. |
 : |
3.5 N·m (0.36 kgf-m, 2.5 lbf-ft) |
| 7. | Blower motor | 18. | Foot duct |
 : |
6.0 N·m (0.61 kgf-m, 4.5 lbf-ft) |
| 8. | Right case | 19. | Blower motor controller |
 : |
Do not reuse. |
| 9. | Left case |
 20. |
O-ring : Apply compressor oil. |
||
| 10. | Packing | 21. | Additional heater (if equipped) |
