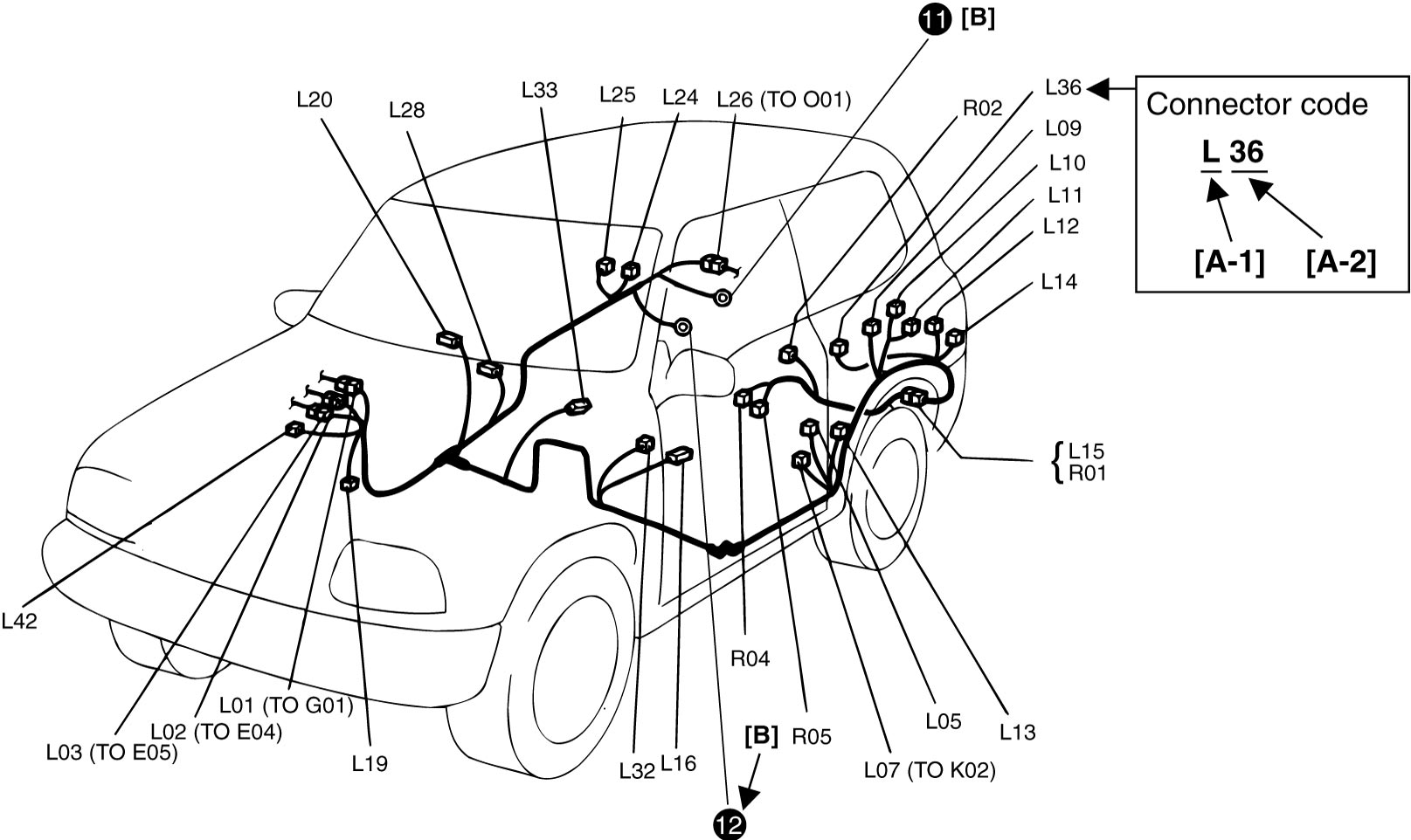

How to Read Connector Layout Diagram
Precautions: Cautions for Body Electrical System Servicing · Precautions for Body, Cab and Accessories · General safety (00)
[A-1]: Harness Symbol and Corresponding Harness Name
A: Battery cable
B: A/C harness
C: Engine harness
D: Injector harness, Oil pressure switch wire
E: Main harness, Power steering wire
F: Console wire
G: Instrument panel harness, Instrument panel antenna wire
J: Side door wire (including P/W related wires)
K: Interior light harness, Roof wire, Roof radio antenna wire, Rear speaker wire
L: Floor harness, Floor antenna wire, Coupling harness, Accessory socket wire, G sensor wire
M: Rear bumper wire
O: Rear end area harness/wires (except Rear bumper wire)
Q: Curtain air bag wire, Side-air bag harness, Pretensioner wire
R: Fuel pump wire
S: Contact coil
[A-2]: Connector Number
[B]: Ground Point No.
