J/B Connector Layout
Precautions: Cautions for Body Electrical System Servicing · Precautions for Body, Cab and Accessories · General safety (00)
Fuse Side

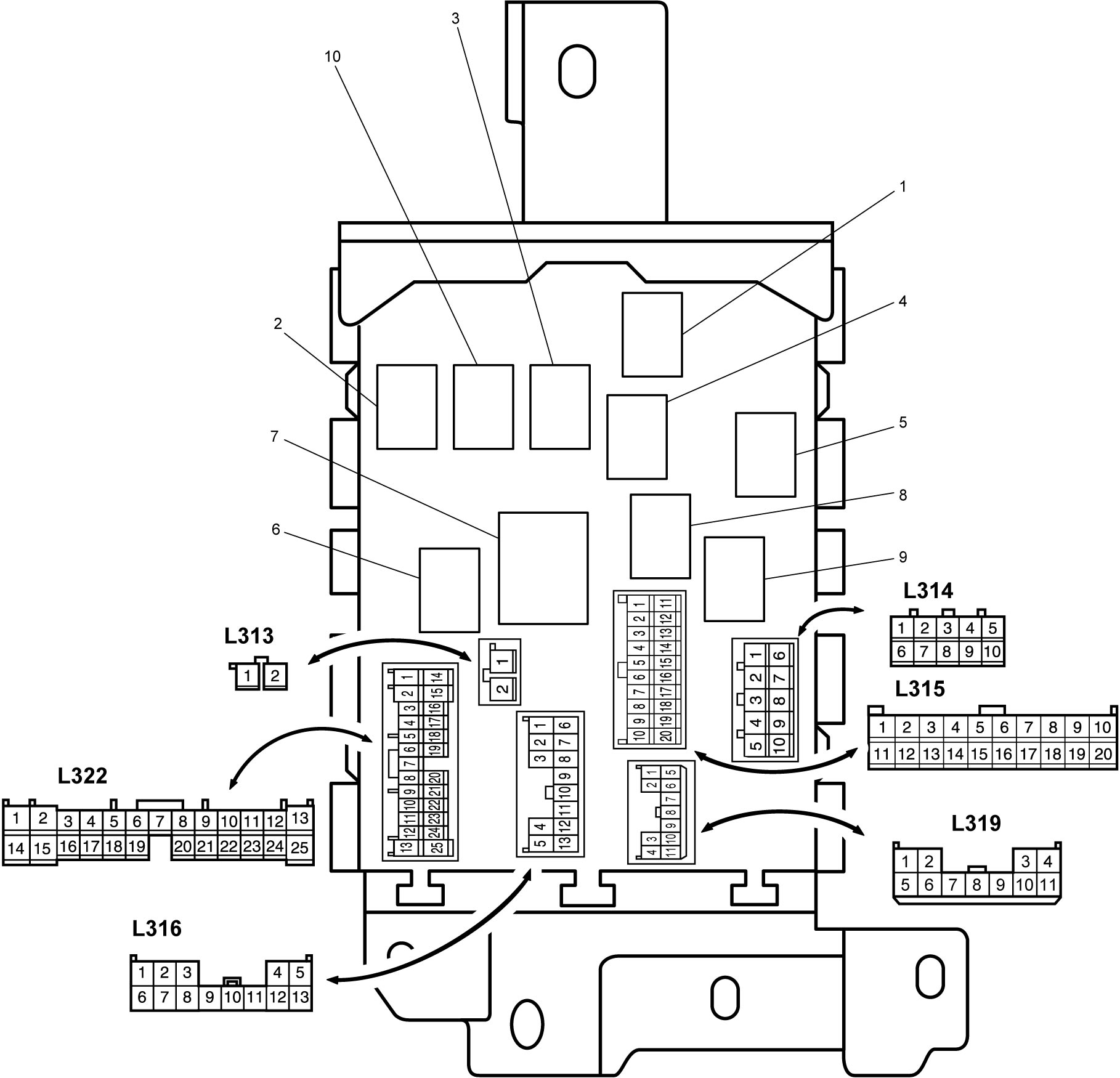

Relay Side
| 1. | Tail light relay | 5. | Blower motor relay | 9. | Rear defogger and mirror heater relay |
| 2. | DRL relay | 6. | IG1 relay | 10. | Rear fog light relay |
| 3. | Accessory relay | 7. | IG2 relay | ||
| 4. | Horn relay | 8. | Rear wiper relay |
