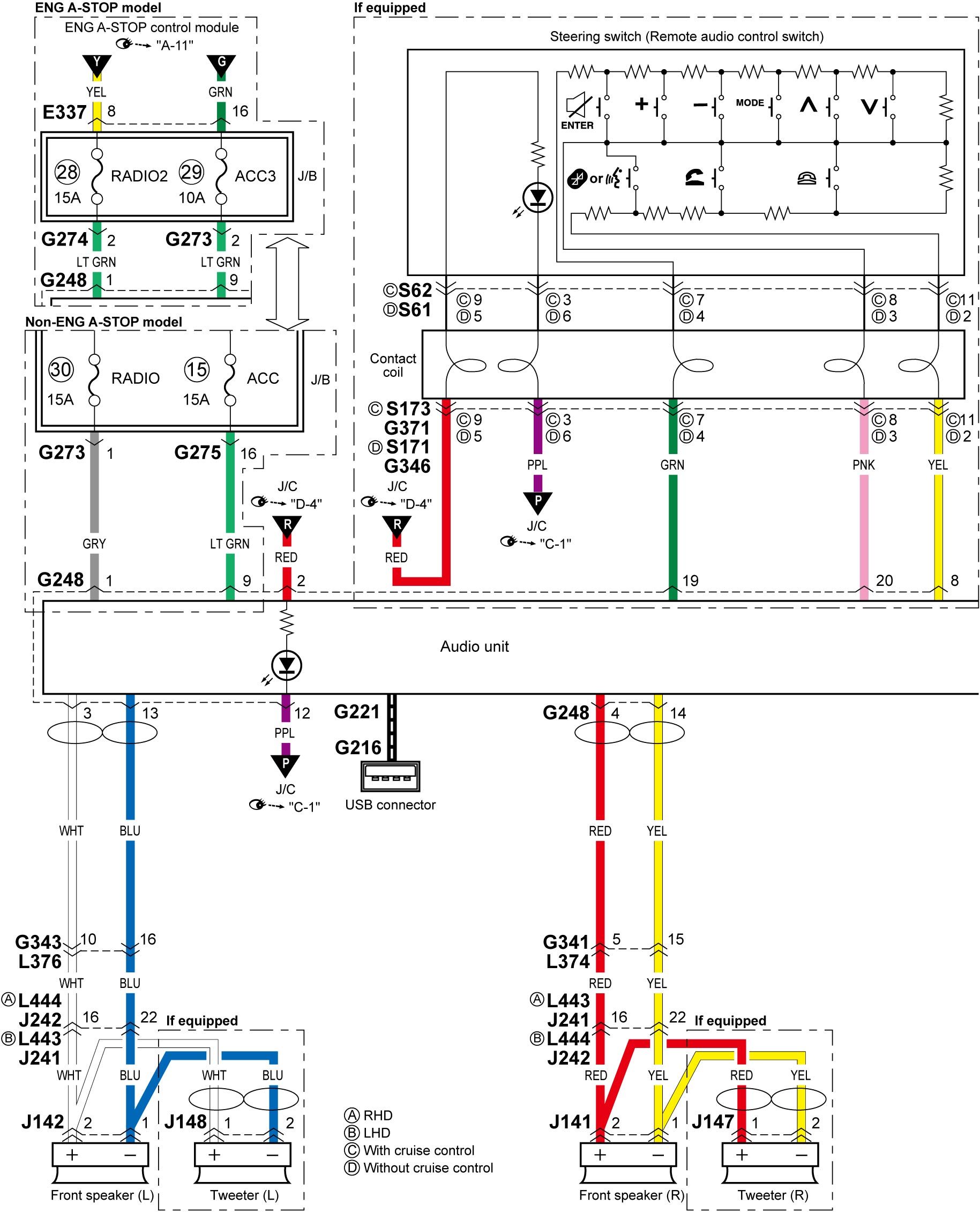

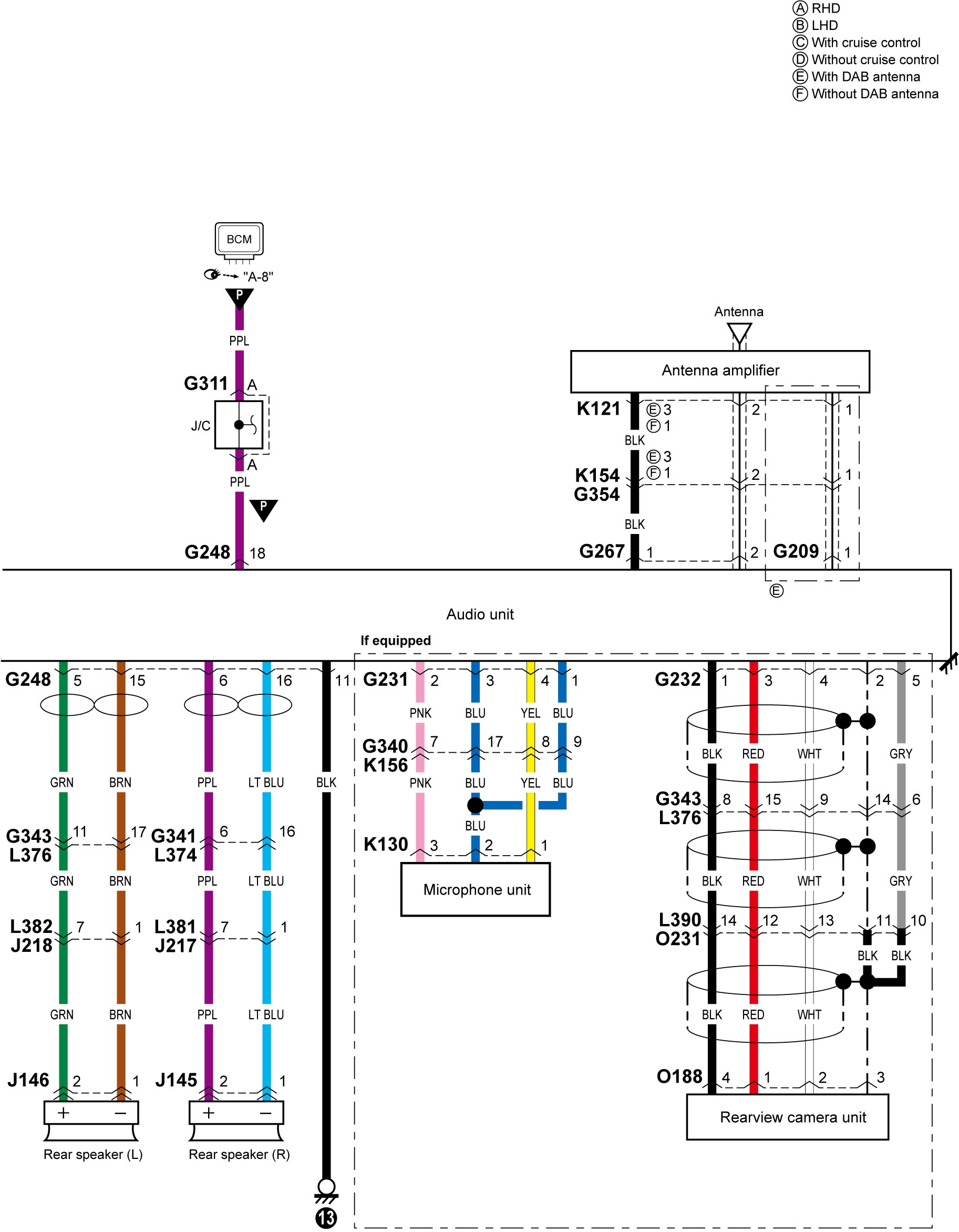

G-1 Audio System Circuit Diagram
Precautions: Cautions for Body Electrical System Servicing · Precautions for Body, Cab and Accessories · General safety (00)
NOTE:
The illustrated wire for the USB connectors shows the cable between the connectors.
The terminal-to-terminal circuits are not shown.
