C Connector
Precautions: Cautions for Body Electrical System Servicing · Precautions for Body, Cab and Accessories · General safety (00)

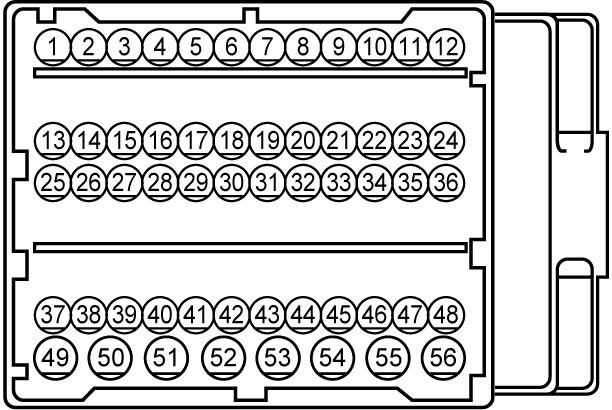

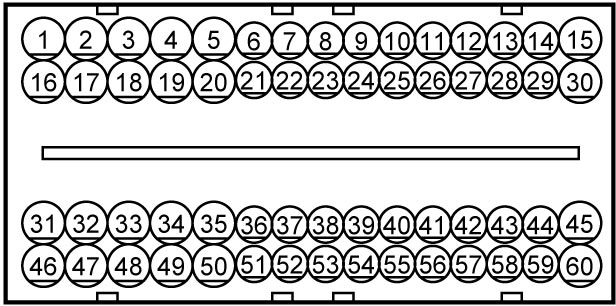

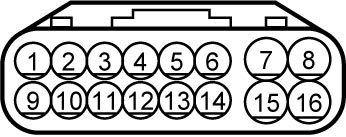

| C01 | C01 | ||||
 |
 |
||||
| M16A | K14C | ||||
| C06 | C27 | C31 | C31 | C32 | |
 |
 |
 |
 |
 |
|
| A/T model | K14C | M16A, K14C Non ENG A-STOP model | K14C ENG A-STOP model | M16A | |
| C32 | C36 | C37 | C37 | C38 | C39 |
 |
 |
 |
 |
 |
 |
| K14C | Petrol model | M16A | K14C | M16A | Petrol model |
| C42 | C47 | C48 | C51 | C52 | C56 |
 |
 |
 |
 |
|
 |
| Petrol model | K14C | Petrol model | K14C | K14C | Petrol model |
| C59 | C64 | C69 | C91 | C92 | C93 |
 |
|
 |
 |
|
|
| 4WD model | M16A | K14C | Petrol model | Petrol model | Petrol model |
| C94 | C101 | C101 | C102 | C102 | C103 |
|
|
|
 |
|
|
|
| Petrol model | M16A | K14C | M16A | K14C | M16A |
| C103 | C104 | C104 | C123 | C123 | C124 |
|
|
|
|
|
 |
 |
| K14C | M16A | K14C | M16A | K14C | Petrol model |
| C126 | C127 | C132 | C141 | C162 | C165 |
 |
|
|
 |
 |
|
| K14C | K14C | K14C | Petrol model | K14C | M/T model |
| C168 | C191 | C192 | C194 | C195 | C196 |
 |
 |
 |
 |
 |
|
| M/T model | Twin clutch system model | Petrol model | Petrol model | ||
| C196 | C282 | C283 | C283 | C284 | C341 (To D241) |
 |
|
 |
 |
 |
|
| Diesel model | Petrol model | Diesel model | Diesel model | Petrol model | |
| C343 (To E371) | C345 (To E373) | ||||
 |
 |
||||
| If equipped | |||||
