G Connector

Precautions: Cautions for Body Electrical System Servicing · Precautions for Body, Cab and Accessories · General safety (00)

G04			G16
			Keyless push start model
G17		G20			G32
		Auto A/C model
G33	G34	G35	G50		G54
ESP® model	Auto A/C model	Auto A/C model
G55	G61	G62	G63	G64	G65
			Auto A/C model	Auto A/C model	Auto A/C model
G101	G112	G116	G117	G118	G128
Manual A/C model		ENG A-STOP model	With parking sensor system	ESP® model with parking sensor system
G129	G130	G140		G141
		Keyless push start model		Without auto wiper
G141		G144		G145	G146
With auto wiper				Ignition switch model	Keyless push start model
G147	G151	G152	G153	G154	G155
Ignition switch model	If equipped	Headlight manual leveling		Manual A/C model	Manual A/C model
G163	G168	G170	G208	G209
If equipped		ESP® model with parking sensor system	With parking sensor system	With DAB antenna
G211		G216	G221	G222	G227

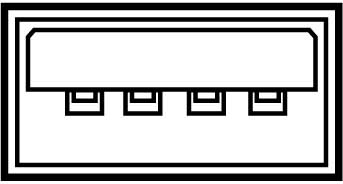

		USB connector	If equipped	9 or 11-channel	Auto A/C model
G231	G232	G240		G243
If equipped	If equipped			If equipped
G248		G252	G255	G259	G267
			Auto A/C model
G271	G272	G273	G274	G275
G306		G307		G308
G309		G310		G311
G333 (To E381)		G334 (To E382)	G335 (To E383)	G340 (To K156)
G341 (To L374)		G342 (To L375)	G343 (To L376)	G344 (To L377)	G345 (To L378)
G346 (To S171)		G347 (To S172)	G354 (To K154)	G354 (To K154)	G356 (To F173)
Without cruise control		Without cruise control	Without DAB antenna	With DAB antenna
G371 (To S173)	G374 (To S174)	G426	G428	G429
With cruise control	With cruise control	With RBS	With hill descent control	With hill descent control and ENG A-STOP
