LED DRL Removal and Installation (If Equipped)

Precautions: Precautions for Headlight Auto Leveling System Service · Precautions for Body, Cab and Accessories · General safety (00)

NOTE:

LED DRL bulb is LED.

Replace LED DRL assembly if LED DRL bulb is defective.

Removal

1)Remove front fender lining.

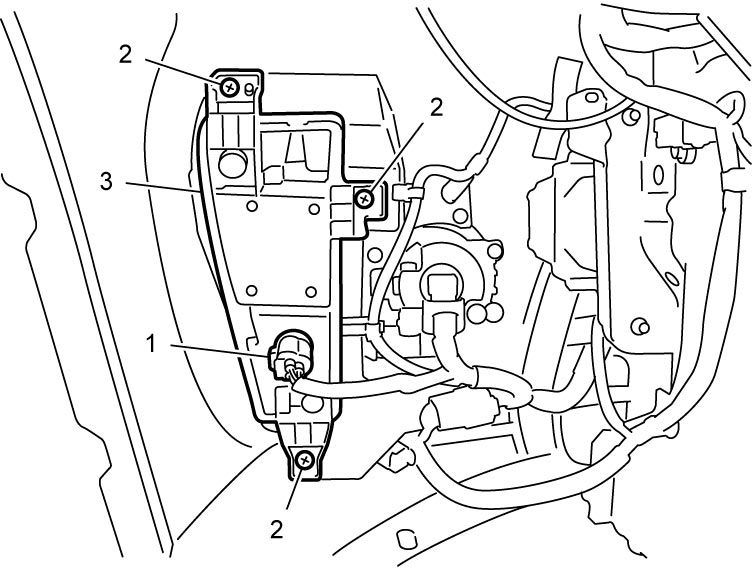

2)Disconnect connector (1) from LED DRL.

3)Remove LED DRL screws (2) and then remove LED DRL (3).

Installation

Reverse removal procedure.
