Combination Meter / Parking Sensor System Self-Diagnosis Function

Combination meter and parking sensor system control module have self-diagnosis function that stores content (DTC) of a detected error.

A recorded DTC will be retained until it is cleared.

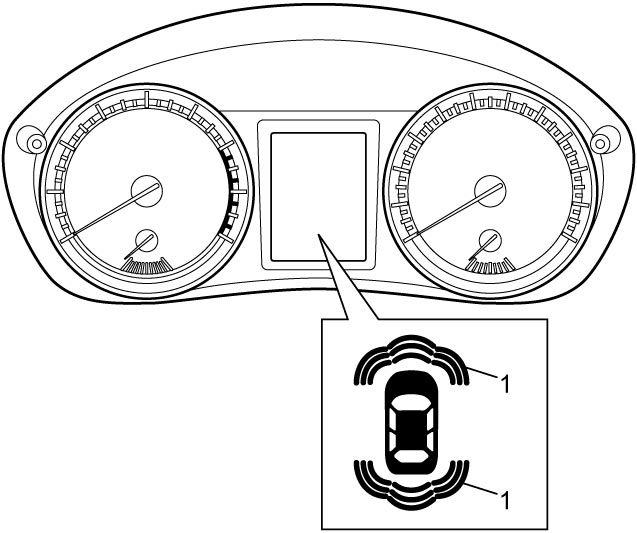

In case any malfunction is found in the parking sensor system, if the parking sensor OFF switch is not pressed (the parking sensor system is active), the parking sensor symbol (1) on information display flashes and the parking sensor buzzer sounds to warn the driver of the malfunction.

Fail-safe function inhibits operation of parking sensor system when malfunction occurs in the system.
