Rear Wiper Motor Inspection
Precautions: Precautions for Working on Rain-Sensing Wiper System · Precautions for Body, Cab and Accessories · General safety (00)

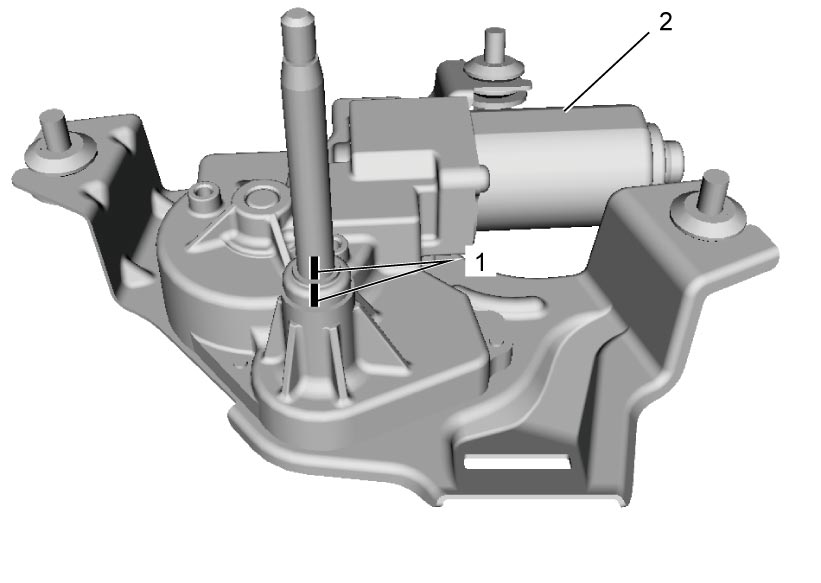

1)Make marks (1) as shown in figure with wiper motor (2) stopped.
2)Connect battery positive (+) and negative (–) terminals to wiper motor connector terminals as shown to operate motor at low speed. If wiper motor does not operate, replace wiper motor.

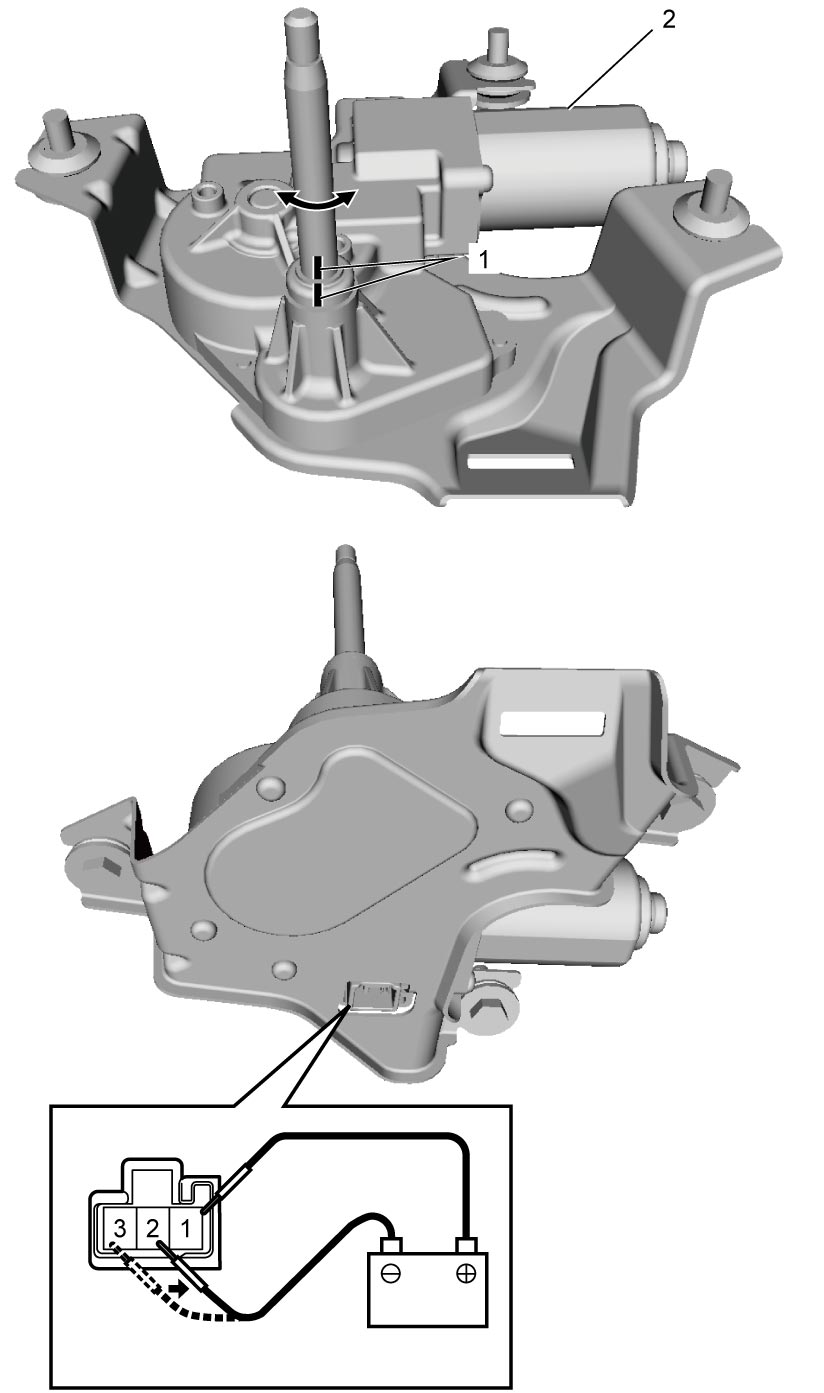

3)Connect battery positive (+) terminal to wiper motor connector terminal “1” and negative (–) terminal to wiper motor connector terminal “3” as shown to operate motor.
4)Disconnect terminal “3” from battery negative (–) terminal to stop wiper motor when marks (1) are not aligned.
5)Connect terminal “2” to battery negative (–) terminal.
Observe the wiper motor (2) turns once again and then stops at a specified position as shown.
Observe the wiper motor (2) turns once again and then stops at a specified position as shown.
6)Repeat Step 3) – 5) several times and check that the wiper motor stops at the specified position every time.
If check result is not as specified, replace wiper motor.
If check result is not as specified, replace wiper motor.
