Rain / Light Sensor Removal and Installation (If Equipped)
Precautions: Precautions for Working on Rain-Sensing Wiper System · Precautions for Body, Cab and Accessories · General safety (00)
Removal

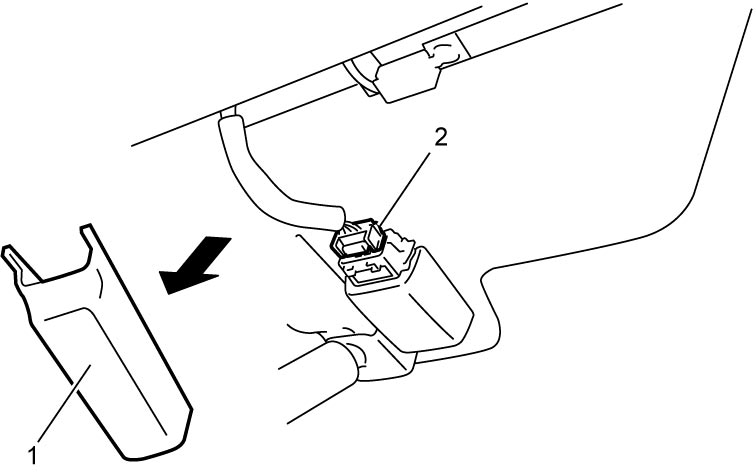

1)Remove harness cover (1).
2)Disconnect rain / light sensor connector (2).

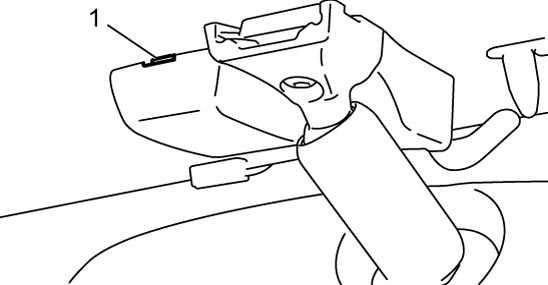

3)Remove rain / light sensor by pushing claw (1) with flat-bladed screwdriver.

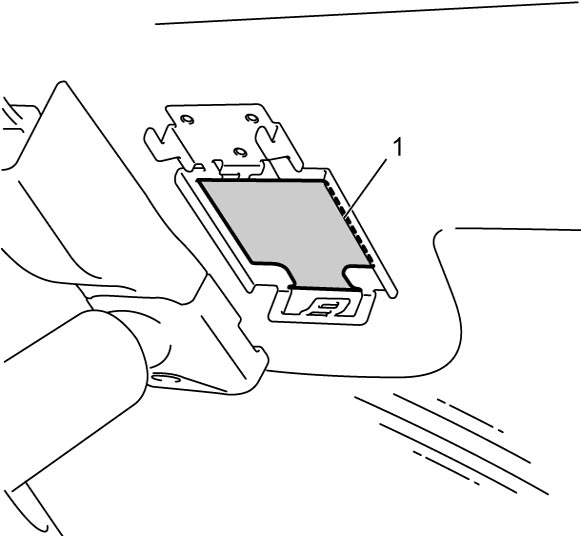

4)Remove silicone sheet (1).
Installation
1)Install silicone sheet on rain / light sensor.
NOTE:
Be careful not to let air bubbles or dirt stuck in between silicone sheet and windshield.
2)Install rain / light sensor on windshield, and connect connector.
NOTE:
Be careful not to let air bubbles or dirt stuck in between silicone sheet and rain / light sensor.
3)Install harness cover.
4)Initialize rain / light sensor.
