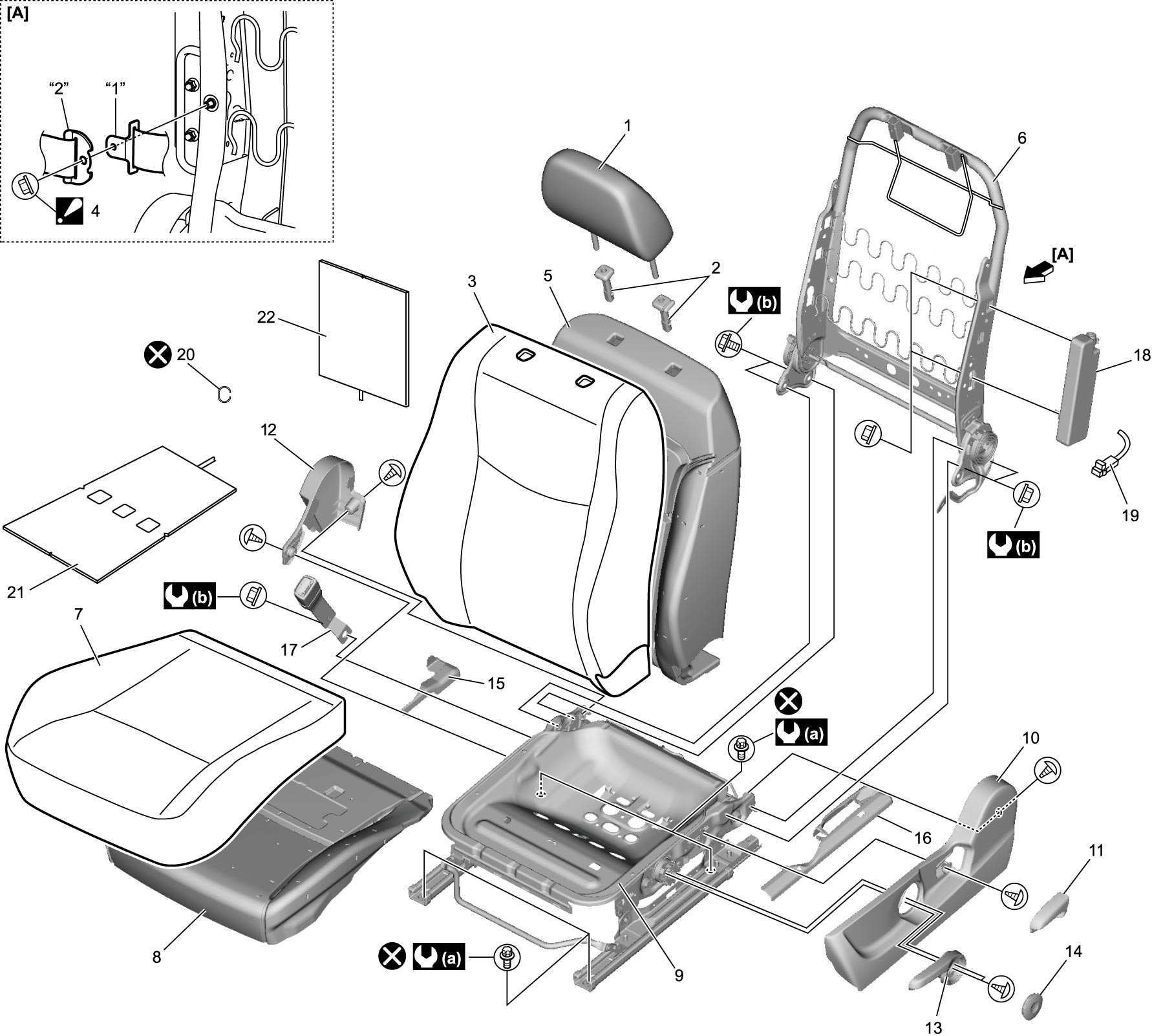

Front Seat Components
Precautions: Precautions for Body, Cab and Accessories · General safety (00)
When replacing any seat component, select correct one referring to parts catalog.
| 1. | Headrest | 10. | Reclining outside cover | 19. | Side-air bag harness (if equipped) |
| 2. | Headrest guide | 11. | Reclining knob | 20. | Trim ring |
| 3. | Front seatback trim | 12. | Reclining inside cover | 21. | Seat cushion heater (if equipped) |
 4. |
Bracket nut (if equipped): Installing order: “1” → “2” | 13. | Seat lifter lever (if equipped) | 22. | Seatback heater (if equipped) |
| 5. | Front seatback pad | 14. | Seat lifter lever cap (if equipped) |
 : |
23 N·m (2.3 kgf-m, 17.0 lbf-ft) |
| 6. | Front seatback frame | 15. | Riser inside cover (if equipped) |
 : |
43 N·m (4.4 kgf-m, 32.0 lbf-ft) |
| 7. | Front seat cushion trim | 16. | Riser outside cover (if equipped) |
 : |
Do not reuse. |
| 8. | Front seat cushion pad | 17. | Front seat belt buckle | ||
| 9. | Front seat cushion frame | 18. | Side-air bag (inflator) module (if equipped) |
