Seat Heater Switch Inspection (If Equipped)
Precautions: Precautions for Body, Cab and Accessories · General safety (00)
Seat heater switch is installed on floor console box.
For removal and installation, refer to Seat Heater Switch Removal and Installation (If Equipped).

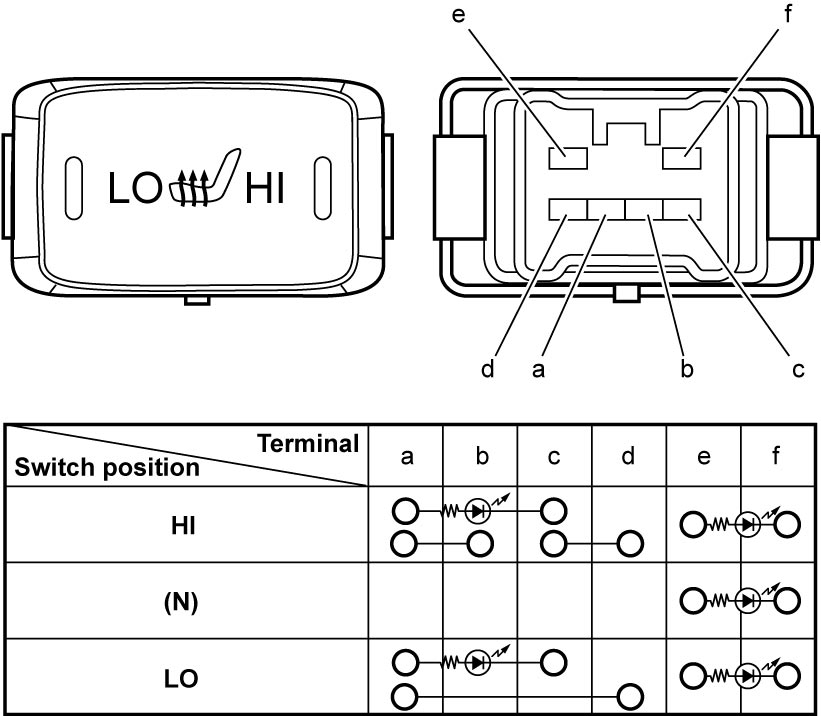

Check for continuity between terminals at each switch position as shown below. If check result is not as specified, replace seat heater switch.
