Center Console Box Removal and Installation
Precautions: Precautions for Body, Cab and Accessories · General safety (00)

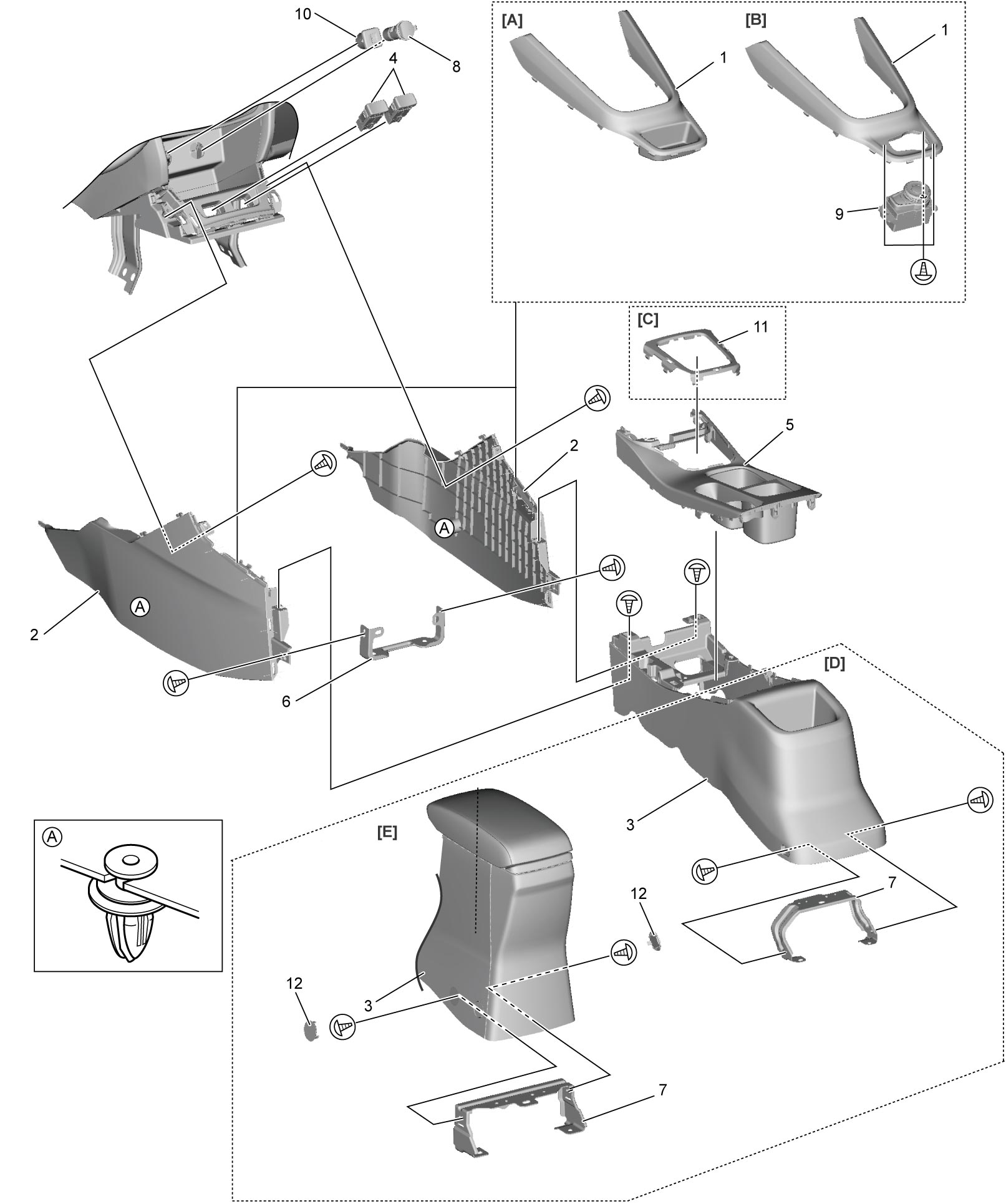

Remove and install related parts referring to figure.
| [A]: | 2WD model | 2. | Floor console front cover | 8. | Accessory socket |
| [B]: | 4WD model | 3. | Floor console rear box | 9. | Driving mode switch (if equipped) |
| [C]: | A/T model | 4. | Seat heater switch (if equipped) | 10. | USB socket (if equipped) |
| [D]: | Without armrest | 5. | Floor console rear panel | 11. | Gear shift garnish |
| [E]: | With armrest | 6. | Floor console box front bracket | 12. | Floor console box rear cap |
| 1. | Floor console front ornament | 7. | Floor console box rear bracket |
