Plastic Part Specifications
Precautions: Precautions for Body, Cab and Accessories · General safety (00)
Plastic Parts and Materials
NOTE:
As exterior and interior plastic parts have material description on back side of each part, use it as reference information. Also, when heating work is needed, remove or protect plastic parts if necessary.

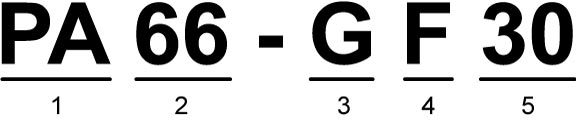

Description of material classification code is as follows.
| 1. | Material |
| 2. | Material variation (PA only) : 6, 66, etc. |
| 3. | Sub-material : “G” means glass, “M” means metal and “T” means talc. |
| 4. | Sub-material shape: “B” means bead, “D” means dust (powder) and “F” means fiber. |
| 5. | Mixture ratio of sub-material |
| Abbreviation | Material |
|---|---|
| ABS | Acrylonitrile-Butadiene-Styrene |
| AEPDS | Acrylonitrile-Ethylene-Propylene-Diene-styrene |
| ASA | Acrylonitrile-Styrene-Acrylate |
| EPDM | Ethylene-Propylene-Diene-Monomer |
| EPM | Ethylene-Propylene-Monomer |
| PA | Polyamide |
| PBT | Polybutylene terephthalate |
| PC | Polycarbonate |
| PE | Polyethylene |
| PET | Polyethylene terephthalate |
| PMMA | Poly methyl methacrylate |
| POM | Polyoxymethylene |
| PP | Polypropylene |
| PPE | Polyphenylene ether |
| PS | Polystyrene |
| PVC | Polyvinyl chloride |
| TEO | Thermoplastic elastomer, olefin |
| TPE | Thermoplastic elastomer |
| UP | Unsaturated polyester |
Major Plastic Parts and Installation Positions

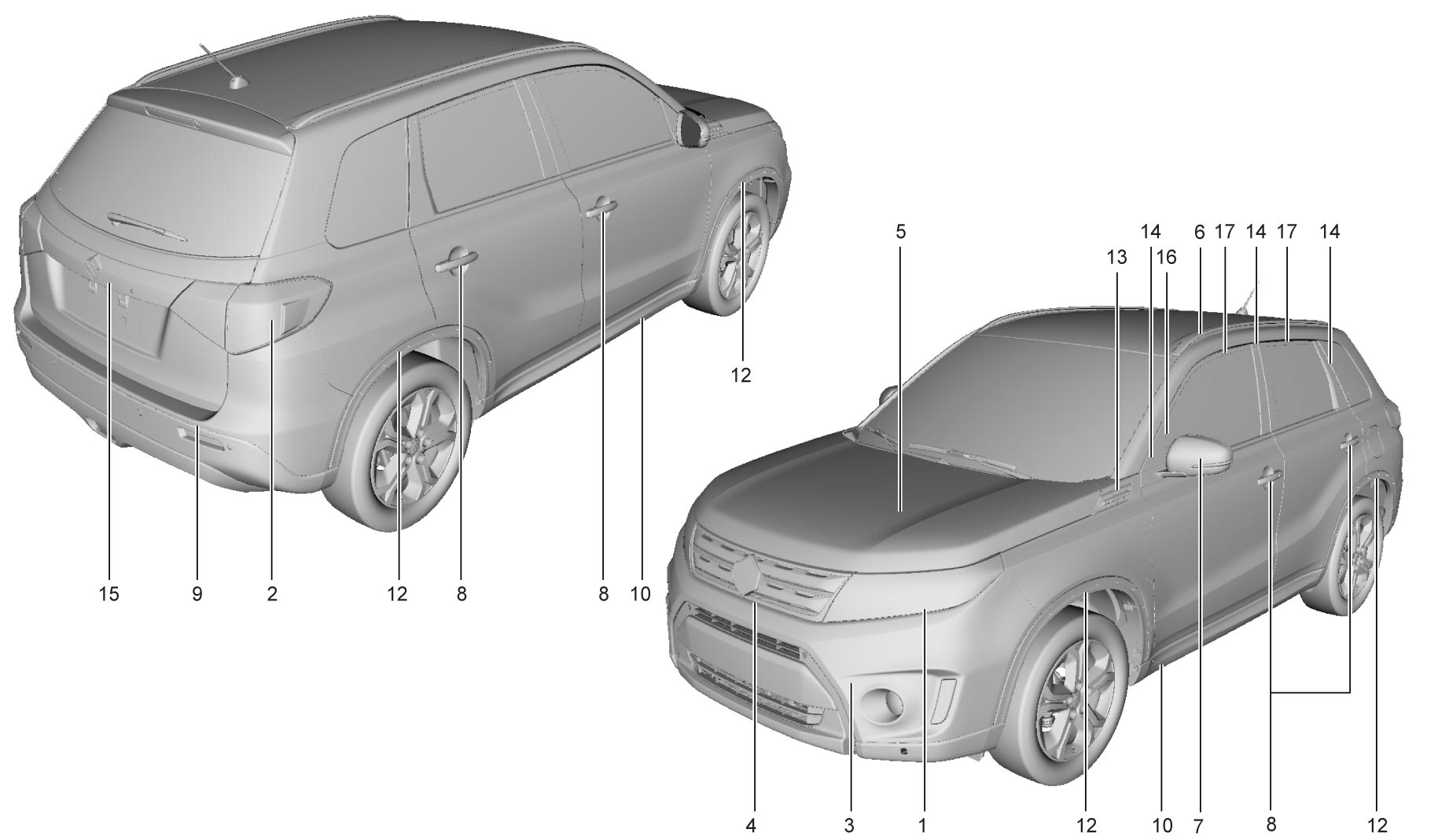

Body exterior
| Part name | Mark | Heat-resistant temperature limit (°C(°F)) | ||
|---|---|---|---|---|
| 1 | Headlight | Lens | PC | 130 (266) |
| Housing | PP | 125 (257) | ||
| 2 | Rear combination light | Lens | PMMA | 100 (212) |
| Housing | ABS+PC | 80 (176) | ||
| 3 | Front Bumper | Upper | PP+EPM | 80 (176) |
| License garnish | PP | 80 (176) | ||
| Lower garnish | PP+EPM | 80 (176) | ||
| 4 | Radiator grill | Grill | PP | 80 (176) |
| Grill garnish | ABS | 80 (176) | ||
| 5 | Cowl top garnish | PP | 80 (176) | |
| 6 | Roof molding / Roof rail | PVC | 80 (176) | |
| 7 | Door mirror | Lens | PC | 80 (176) |
| Housing | ASA | 80 (176) | ||
| Visor mirror cover | ABS | 80 (176) | ||
| 8 | Outside door handle | Frame | PA | 80 (176) |
| Handle | PC+PBT | 80 (176) | ||
| 9 | Rear Bumper | Upper | PP+EPM | 80 (176) |
| Lower center garnish | PP+EPM | 80 (176) | ||
| Lower garnish | PP+EPM | 80 (176) | ||
| 10 | Side sill guard | PP+EPM | 80 (176) | |
| 12 | Fender guard | Front / Rear | PP+EPM | 80 (176) |
| 13 | Front fender garnish | PP | 80 (176) | |
| 14 | Door outer garnish | Front / Rear | PMMA | 80 (176) |
| 15 | Rear end door license garnish | PC+PBT | 80 (176) | |
| 16 | Partition weather | Front / Rear | TPE | 80 (176) |
| 17 | Door glass run | Front / Rear | TPE | 80 (176) |

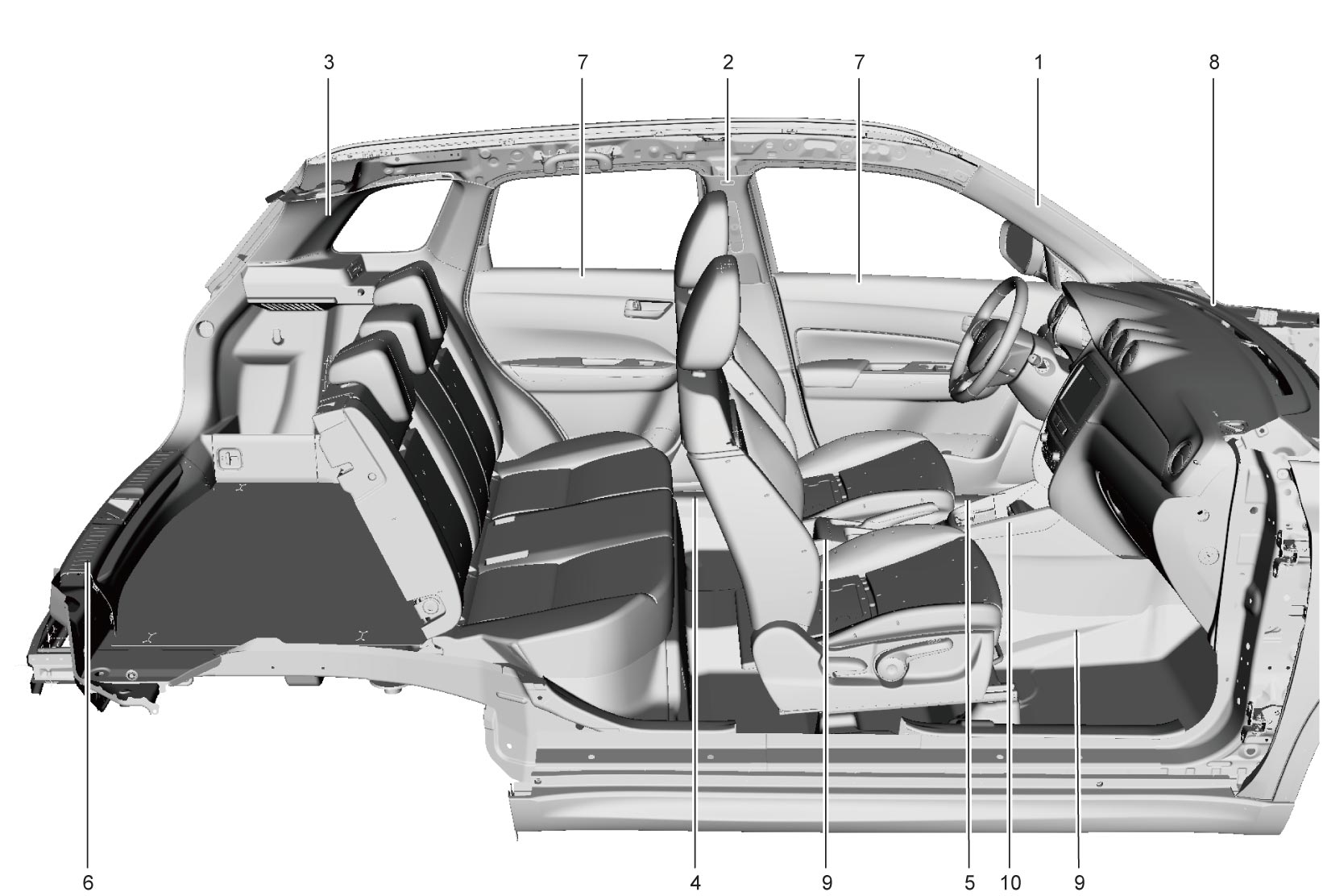

Body interior
| Part name | Mark | Heat-resistant temperature limit (°C(°F)) | ||
|---|---|---|---|---|
| 1 | Front pillar trim | PP | 80 (176) | |
| 2 | Center pillar trim | Upper | PP | 80 (176) |
| Lower | PP | 80 (176) | ||
| 3 | Rear quarter inner trim | Upper | PP | 80 (176) |
| Lower | PP | 80 (176) | ||
| 4 | Side sill scuff | Front / Rear | PP | 80 (176) |
| 5 | Dash side trim | PP | 80 (176) | |
| 6 | Tail end trim | PP | 80 (176) | |
| 7 | Door trim | Front / Rear | PP+EPM | 80 (176) |
| 8 | Instrument panel | PP+EPM | 80 (176) | |
| 9 | Floor console box | Front | PP+EPM | 80 (176) |
| Rear | PP+EPM | 80 (176) | ||
| 10 | Floor console box front ornament | PC+ABS | 80 (176) | |
