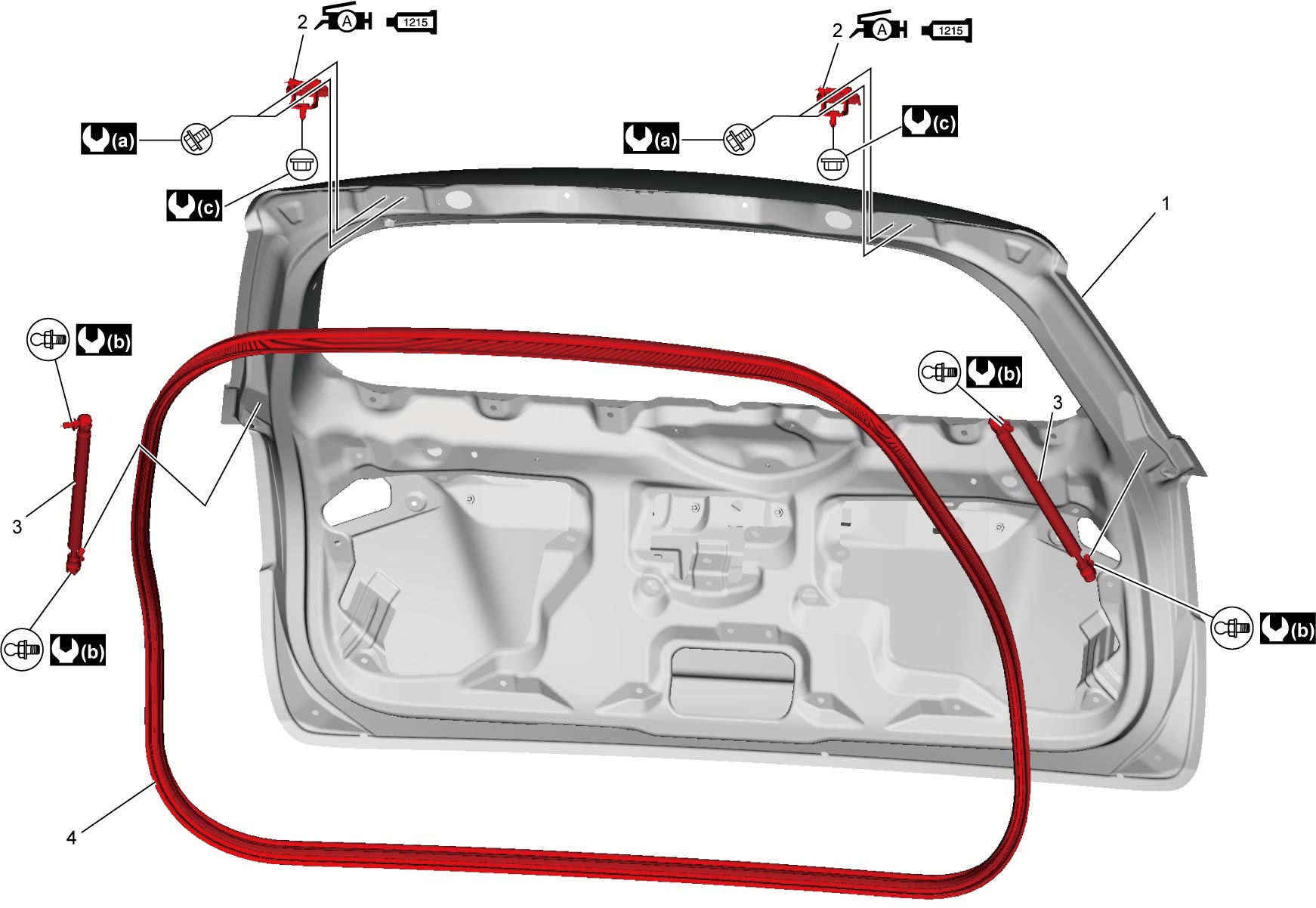

Rear End Door Assembly Components
Precautions: Precautions for Body, Cab and Accessories · General safety (00)
| 1. | Rear end door panel | 4. | Rear end door opening weather-strip |
 : |
13 N·m (1.3 kgf-m, 9.5 lbf-ft) |
  2. |
Rear end door hinge : Apply lithium grease 99000-25011 to rotating part. : Apply sealant 99000-31110 to contact face. |
 : |
10 N·m (1.0 kgf-m, 7.5 lbf-ft) | ||
| 3. | Rear end door balancer |
 : |
23 N·m (2.3 kgf-m, 17.0 lbf-ft) |
