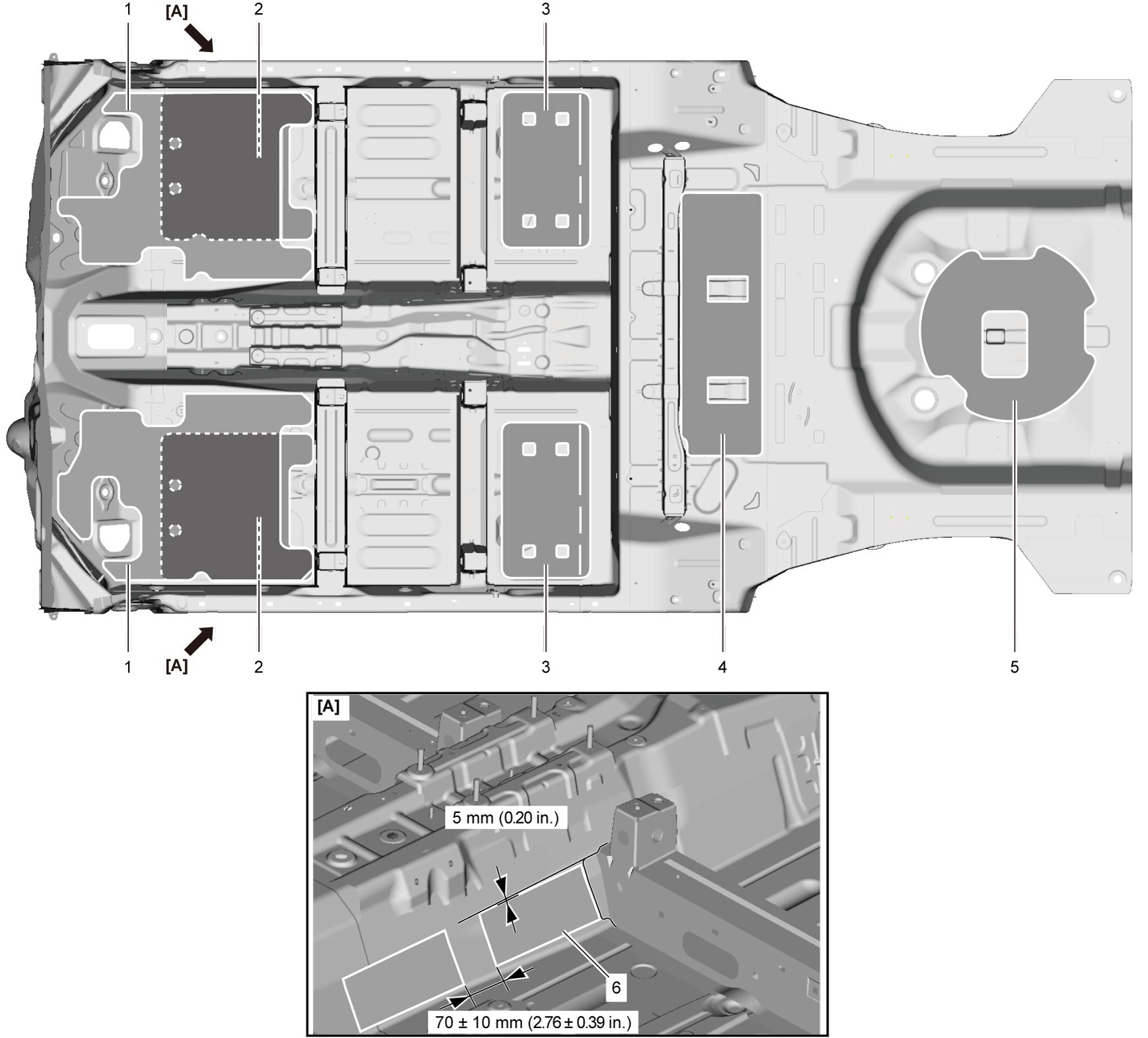

Silencer Sheet Installation Area
Precautions: Precautions for Body Structure · Precautions for Body, Cab and Accessories · General safety (00)
Sheet thickness
| No. | Part name | Thickness |
|---|---|---|
| 1 | Floor front silencer sheet (R, L) | 2.0 mm (0.079 in.) |
| 2 | Floor front silencer sheet (R, L) | 2.0 mm (0.079 in.) |
| 3 | Floor rear silencer sheet (R, L) | 1.5 mm (0.059 in.) |
| 4 | Seat riser panel sheet | 3.0 mm (0.118 in.) |
| 5 | Spare tire house sheet | 2.0 mm (0.079 in.) |
| 6 | Front tunnel side sheet (R, L) | 1.8 mm (0.071 in.) |
