Audio System Circuit Diagram
Precautions: Precautions for Audio Visual / Navigation · Precautions for Body, Cab and Accessories · General safety (00)

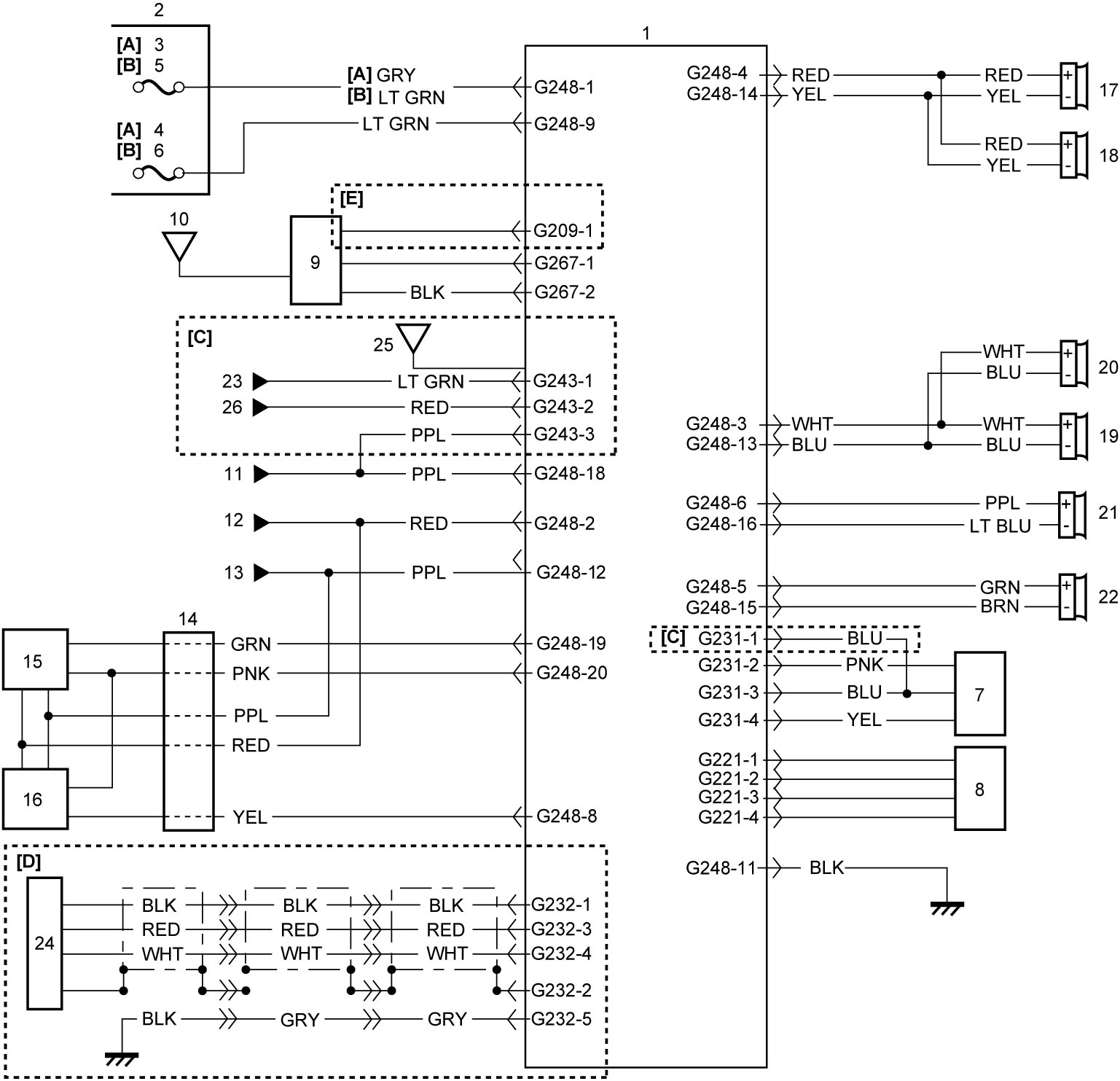

| [A]: | Non-ENG A-STOP model | 7. | Microphone (if equipped) | 18. | Front tweeter (R) (if equipped) |
| [B]: | ENG A-STOP model | 8. | USB socket (if equipped) | 19. | Front speaker (L) |
| [C]: | For navigation unit | 9. | Radio antenna amplifier | 20. | Front tweeter (L) (if equipped) |
| [D]: | With rearview camera | 10. | Radio antenna | 21. | Rear speaker (R) (if equipped) |
| [E]: | For Digital Audio Broadcasting (DAB) terminal | 11. | To BCM | 22. | Rear speaker (L) (if equipped) |
| 1. | Audio / navigation unit (if equipped) | 12. | To tail light relay | 23. | To parking brake switch |
| 2. | J/B | 13. | Combination meter | 24. | Rearview camera |
| 3. | “RADIO” fuse | 14. | Contact coil | 25. | GPS antenna |
| 4. | “ACC” fuse | 15. | Steering switch (audio control switch) (if equipped) | 26. | To back up light switch |
| 5. | “RADIO2” fuse | 16. | Steering switch (hands-free switch) (if equipped) | ||
| 6. | “ACC3” fuse | 17. | Front speaker (R) |
