USB Harness Inspection
Precautions: Precautions for Audio Visual / Navigation · Precautions for Body, Cab and Accessories · General safety (00)

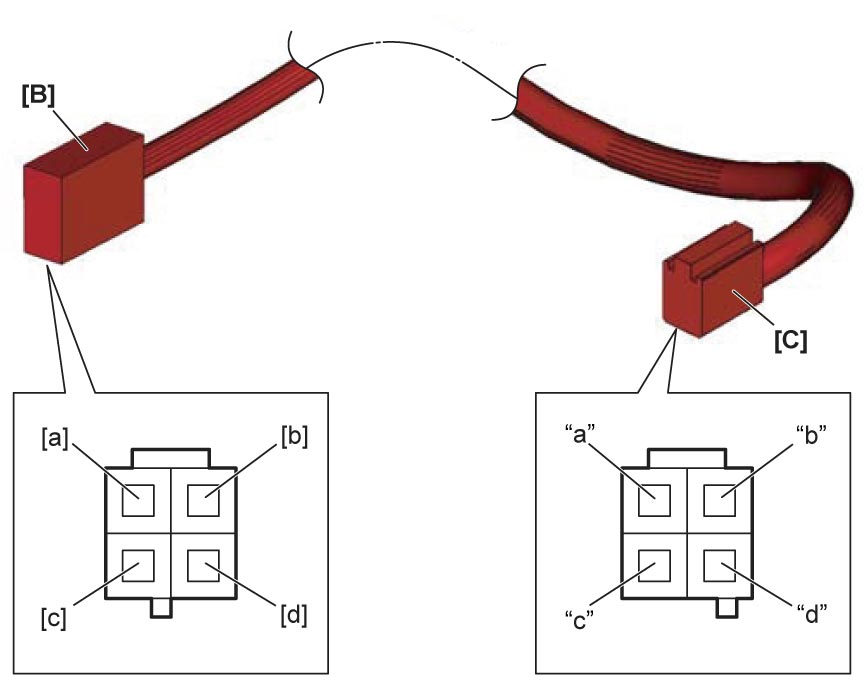

Check continuity between each terminal of USB socket side and audio unit side of USB harness connector as shown in figure.
If check result is not as specified, replace USB harness.
USB harness continuity
| [B]: | To USB socket (“G216” connector) |
| [C]: | To audio unit (“G221” connector) |
