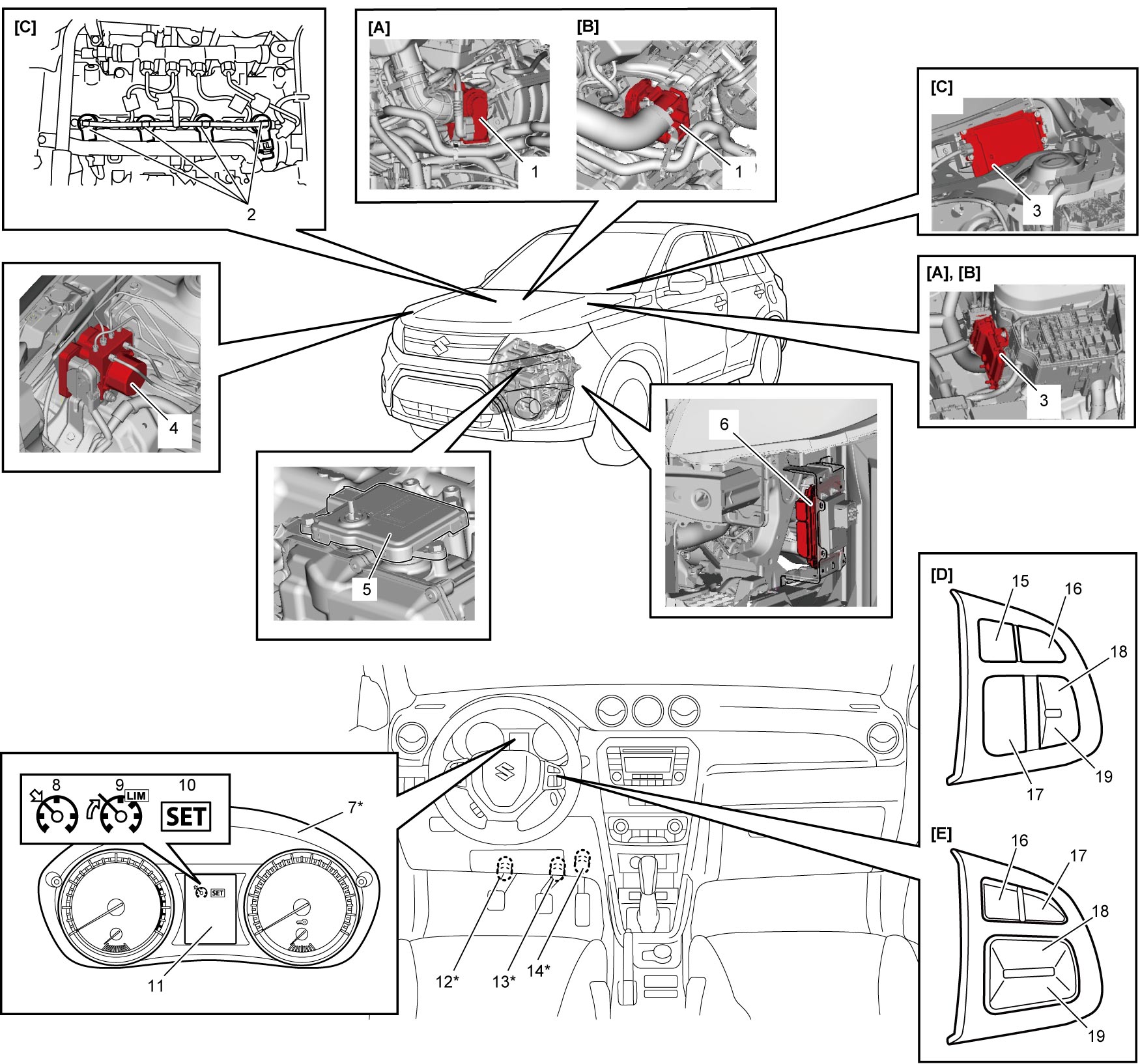

Cruise Control / Speed Limiter System Component Location
Precautions: Precautions for Diagnosing Trouble · General safety (00)
NOTE:
The figure shows LHD. For RHD, parts with (*) are installed at the opposite side.
| [A]: | M16A model | 4. | ESP® control module | 12. | CPP No.2 switch (M/T model) |
| [B]: | K14C model | 5. | TCM (A/T model) | 13. | Brake light switch |
| [C]: | D16AA model | 6. | TCM (twin clutch system model) | 14. | APP sensor |
| [D]: | With speed limiter | 7. | Combination meter | 15. | LIMIT switch |
| [E]: | Without speed limiter | 8. | “CRUISE” indicator | 16. | CRUISE (main) switch |
| 1. | Electric throttle body | 9. | “LIMIT” indicator | 17. | CANCEL switch |
| 2. | Fuel injector | 10. | “SET” indicator | 18. | RES/+ switch |
| 3. | ECM | 11. | Information display | 19. | SET/– switch |
