Adaptive Cruise Control System Component Location
Precautions: Precautions for Diagnosing Trouble · Precautions for Adaptive Cruise Control System · Precautions for Replacing RBS Control Module · General safety (00)
NOTE:
The figure shows LHD. For RHD, parts with (*) are installed on the opposite side.

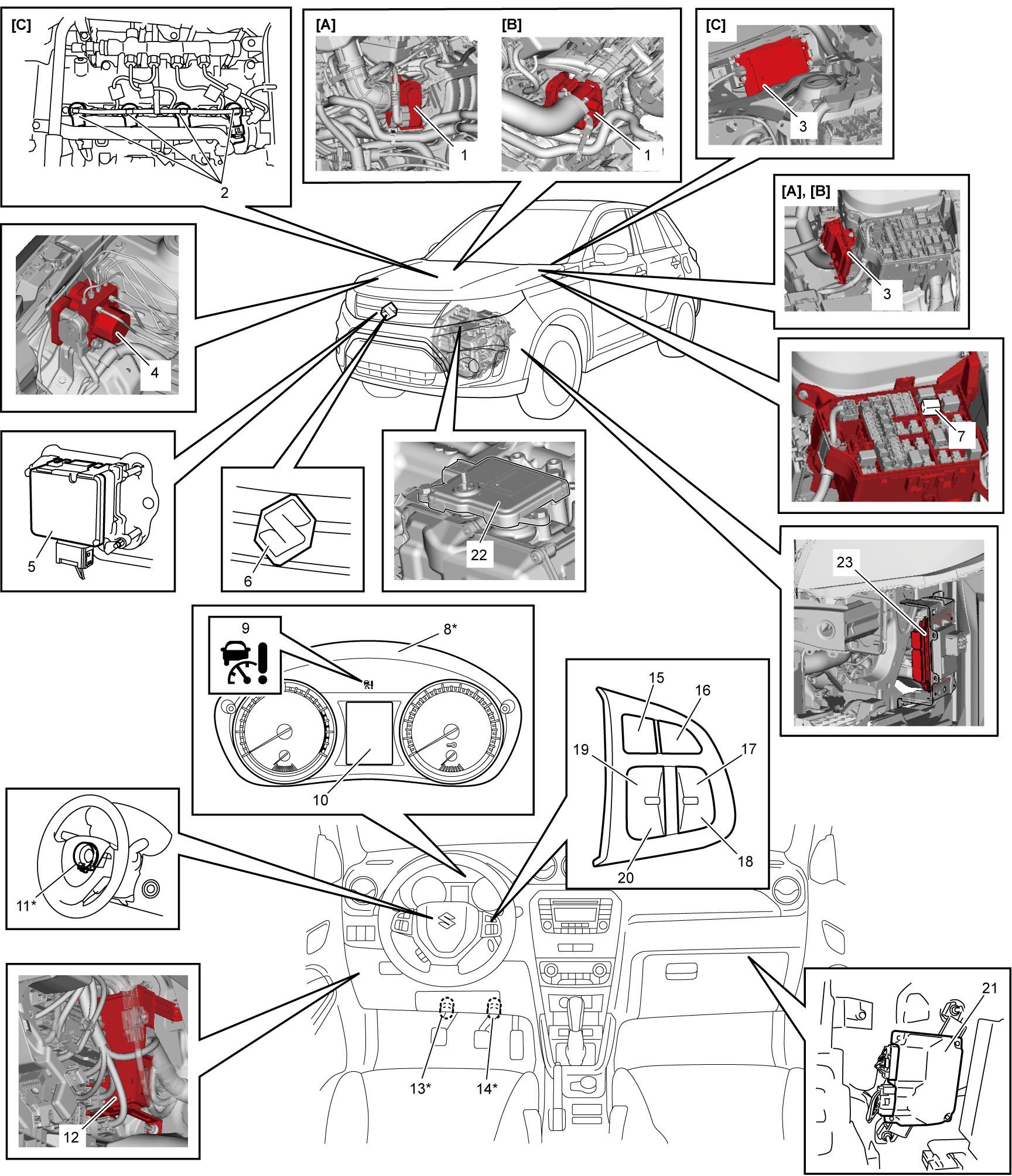

| [A]: | M16A model | 7. | Brake light relay | 16. | CANCEL switch |
| [B]: | K14C model | 8. | Combination meter | 17. | RES/+ switch |
| [C]: | D16AA model | 9. | Adaptive cruise control warning light | 18. | SET/– switch |
| 1. | Electric throttle body | 10. | Information display | 19. | CRUISE (main) switch |
| 2. | Fuel injector | 11. | Steering angle sensor | 20. | LIMIT switch |
| 3. | ECM | 12. | BCM | 21. | ENG A-STOP control module |
| 4. | ESP® control module | 13. | CPP No.2 switch (M/T model) | 22. | TCM (A/T model) |
| 5. | RBS control module | 14. | Brake light switch | 23. | TCM (twin clutch system model) |
| 6. | Millimeter wave radar cover | 15. | Distance switch |
