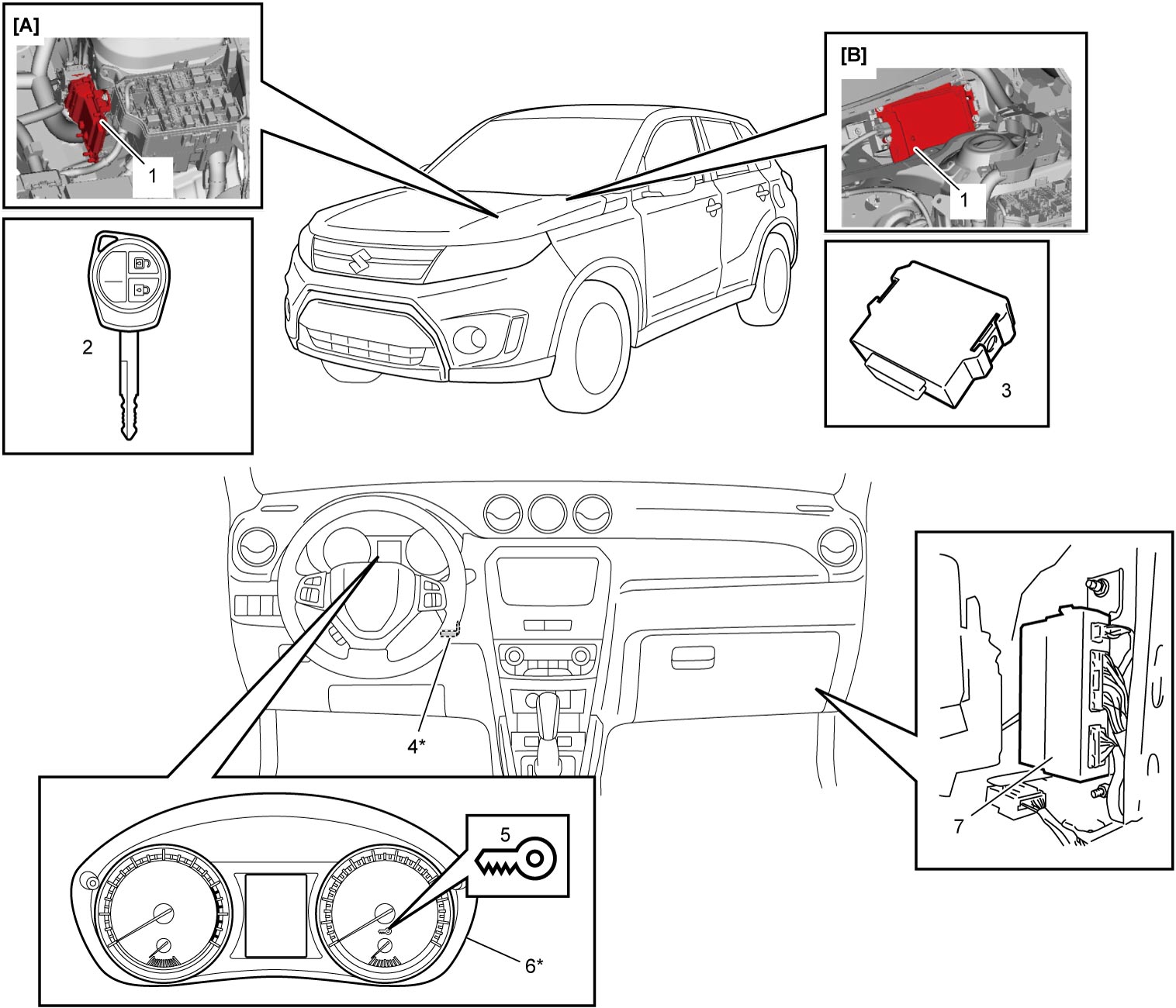

Immobilizer Control System Component Location
Precautions: Precautions for Diagnosing Trouble · Precautions for Immobilizer System · General safety (00)
NOTE:
The figure shows LHD, For RHD, parts with (*) are installed at the opposite side.
| [A]: | M16A model | 2. | Ignition key | 5. | Immobilizer indicator light |
| [B]: | D16AA model | 3. | ID controller (if equipped) | 6. | Combination meter |
| 1. | ECM | 4. | Immobilizer control module | 7. | Keyless entry control module |
