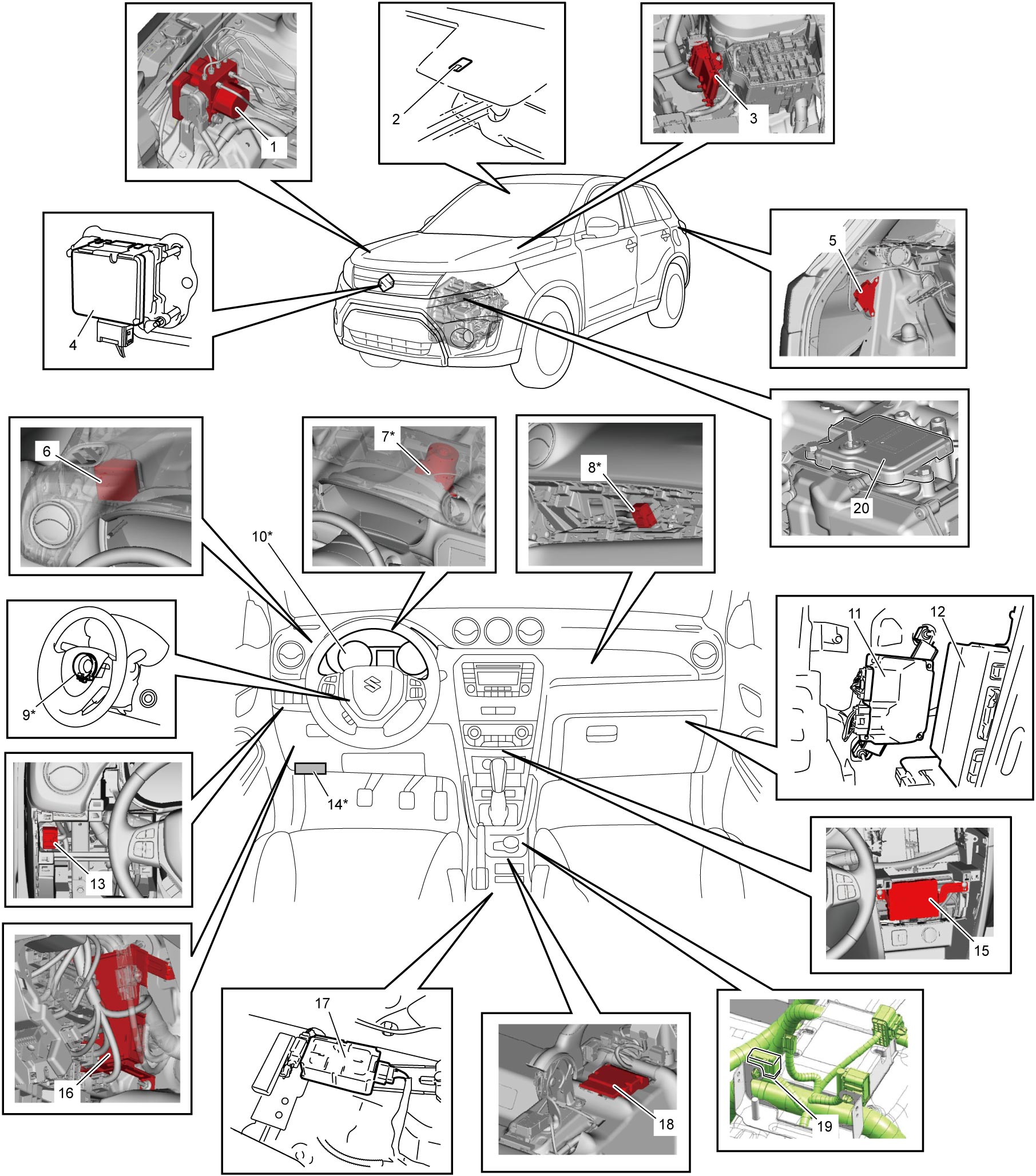

CAN Communication System Component Location
Precautions: Precautions for Diagnosing Trouble · General safety (00)
NOTE:
The figure shows LHD. For RHD, parts with (*) are installed at the opposite side.
| 1. | ESP® control module | 8. | J/C (G310) | 15. | HVAC control module (auto A/C model) |
| 2. | Rain / light sensor (LED headlight model) | 9. | Steering angle sensor | 16. | BCM |
| 3. | ECM | 10. | Combination meter | 17. | TPMS control module (TPMS model) |
| 4. | RBS control module (RBS model) | 11. | ENG A-STOP control module (ENG A-STOP model) | 18. | SDM |
| 5. | 4WD control module (4WD model) | 12. | Keyless entry / keyless start control module | 19. | J/C (L346) |
| 6. | Headlight auto leveling control module (LED headlight model) | 13. | J/C (E346) (LED headlight model / RBS model) | 20. | TCM (A/T model) |
| 7. | P/S control module | 14. | DLC |
