INSTALLATION
HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.
- When installing the moulding, heat the vehicle body and moulding using a heat light.
Standard heating temperature:
|
Item |
Temperature |
|---|---|
|
Vehicle Body |
40 to 60°C (104 to 140°F) |
|
Moulding |
20 to 30°C (68 to 86°F) |
NOTICE:
Do not heat the vehicle body and moulding excessively.
1. INSTALL OUTSIDE MOULDING
(a) Clean the vehicle body surface.
(1) Using a heat light, heat the vehicle body surface.
(2) Remove the double-sided tape from the vehicle body.
(3) Wipe off any tape adhesive residue with cleaner.
(b) If reusing the moulding:
Clean the moulding.
(1) Using a heat light, heat the moulding.
(2) Remove the double-sided tape from the moulding.
(3) Wipe off any tape adhesive residue with cleaner.

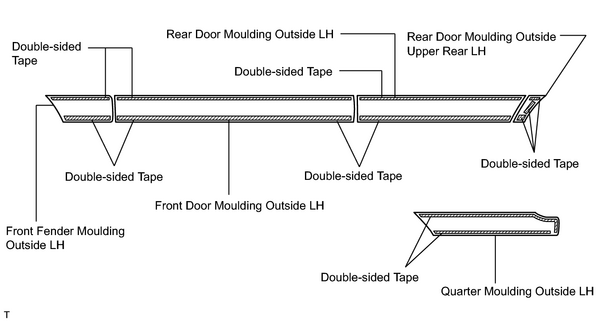

(4) Apply new double-sided tape to the moulding, as shown in the illustration.
(c) Install the moulding.
(1) Using a heat light, heat the vehicle body and moulding.
(2) Remove the peeling paper from the face of the moulding.
HINT:
After removing the peeling paper, keep the exposed adhesive free from foreign matter.
(3) Install the moulding.
|
|
