| Last Modified: 6-7-2017 | 6.8:8.0.40 | Doc ID: RM000000SM9003X |
| Model Year Start: 2006 | Model: Land Cruiser | Prod Date Range: [05/2005 - ] |
| Title: 2UZ-FE ENGINE MECHANICAL: TIMING BELT: COMPONENTS; 2006 MY Land Cruiser [05/2005 - ] | ||
COMPONENTS

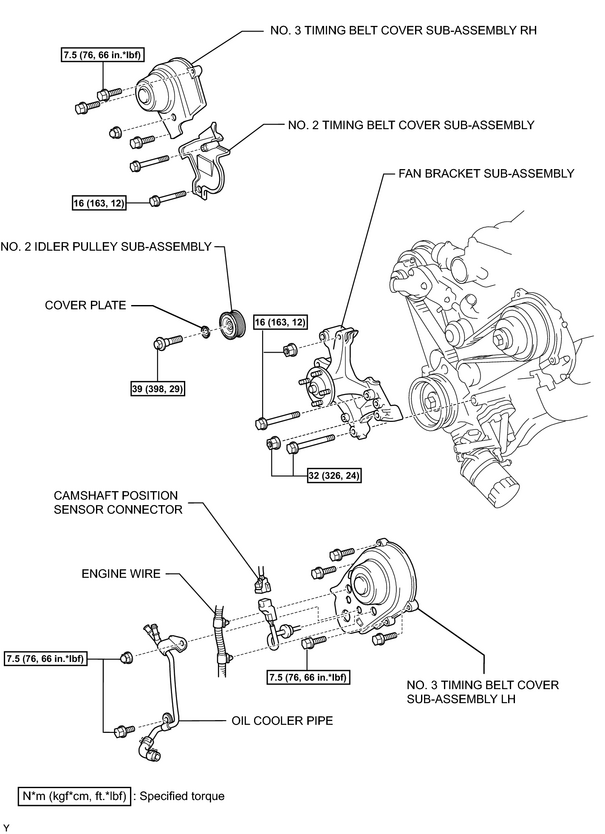

ILLUSTRATION

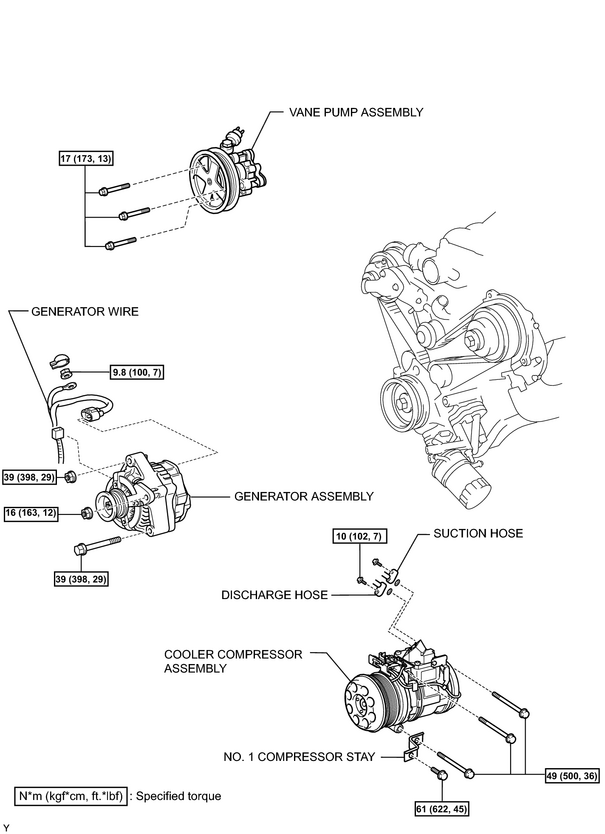

ILLUSTRATION

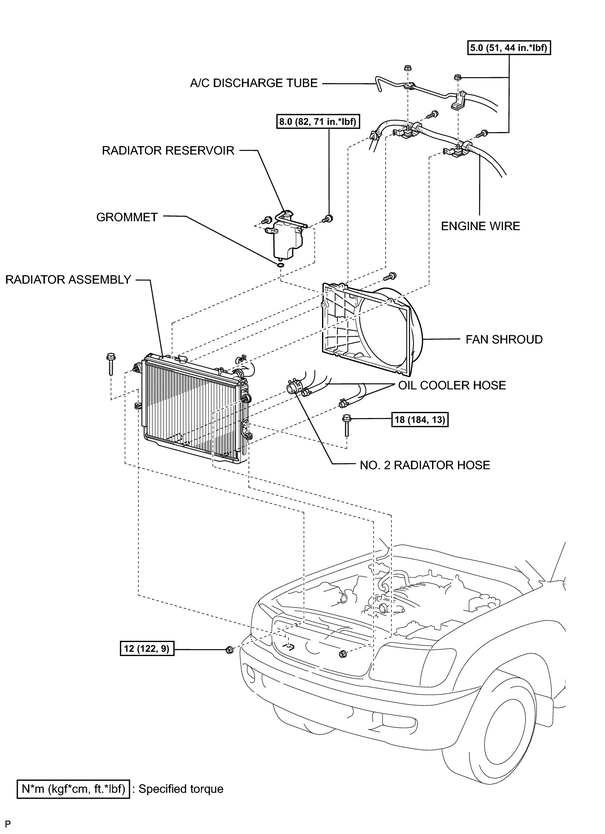

ILLUSTRATION

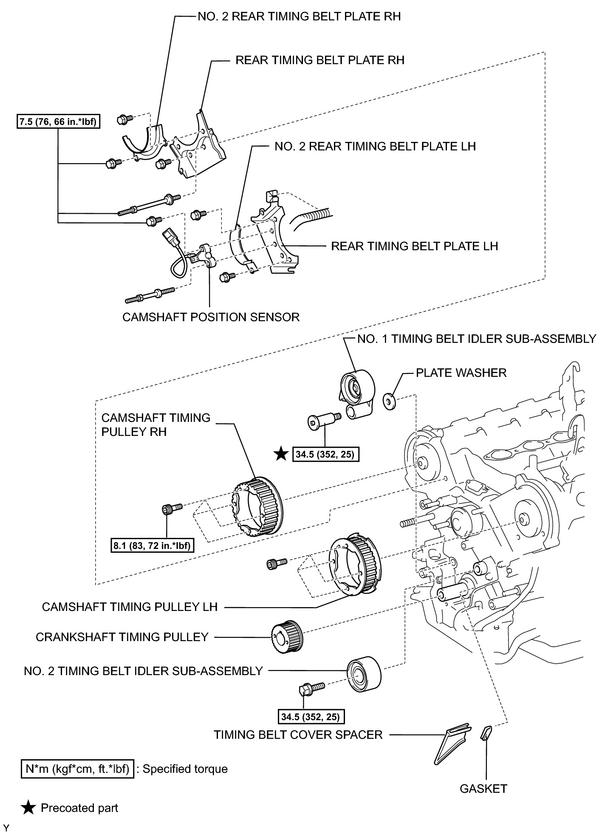

ILLUSTRATION

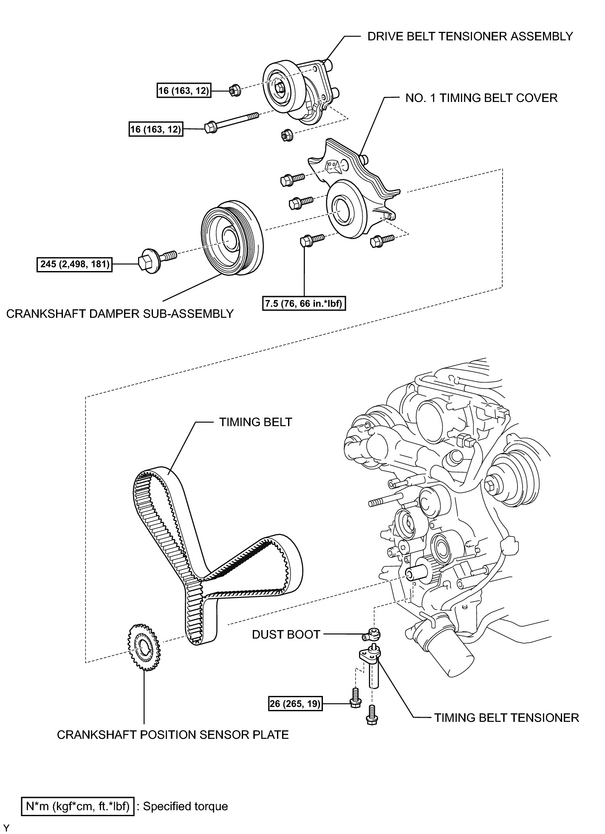

ILLUSTRATION

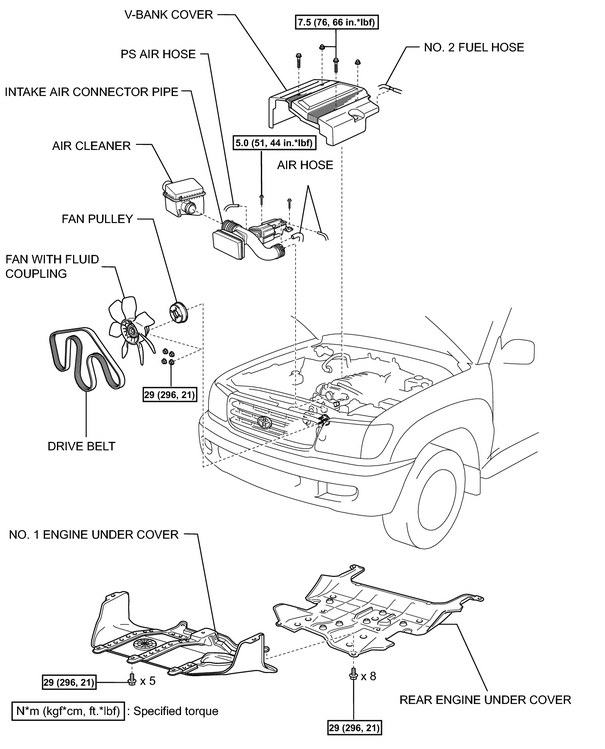

ILLUSTRATION
|
|
