SYSTEM DIAGRAM

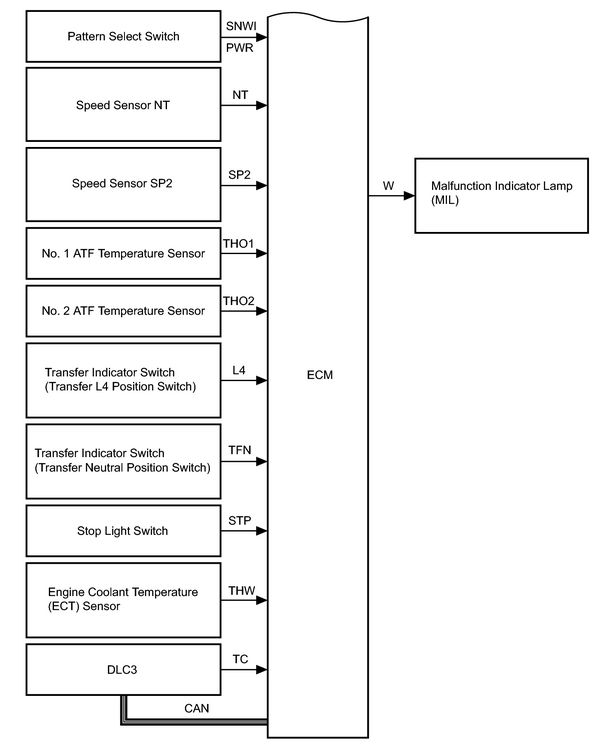

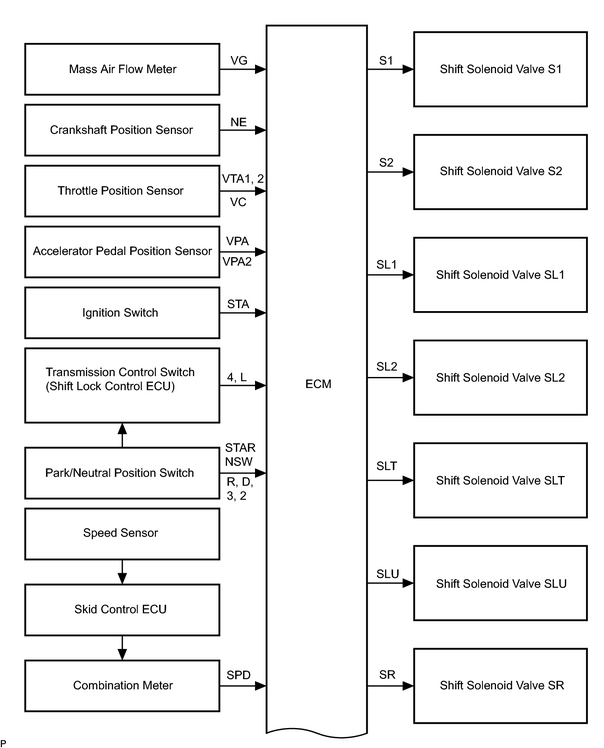

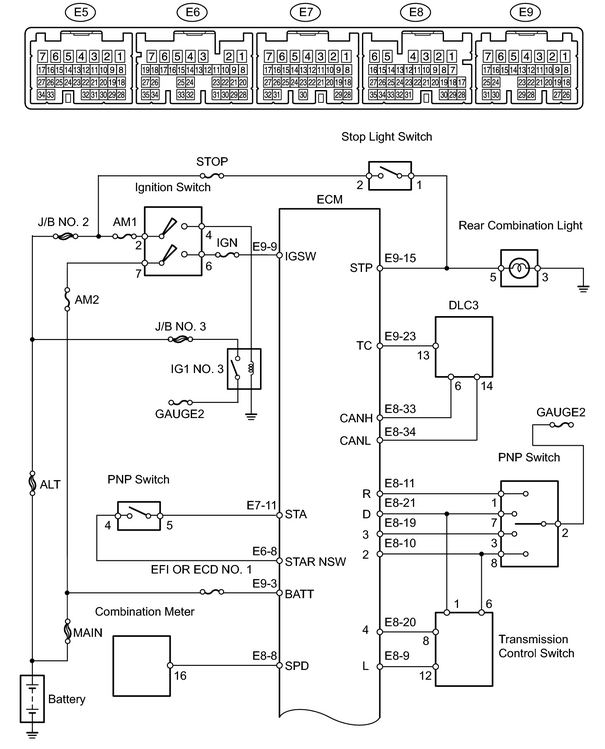

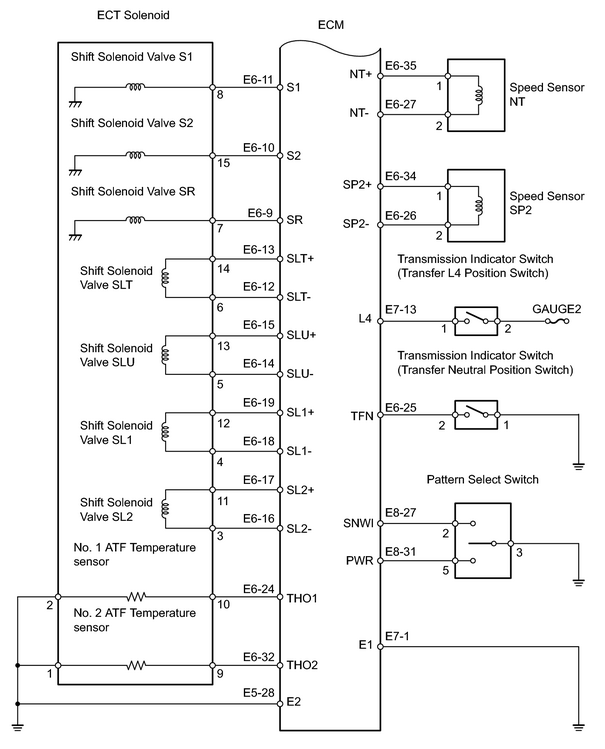

The configuration of the electronic control system in the A750F automatic transmission is as shown in the following chart.
|
|
