| Last Modified: 6-7-2017 | 6.8:8.0.40 | Doc ID: RM000000WIC006X |
| Model Year Start: 2006 | Model: Land Cruiser | Prod Date Range: [05/2005 - ] |
| Title: CAN COMMUNICATION: CAN COMMUNICATION SYSTEM: SYSTEM DIAGRAM; 2006 MY Land Cruiser [05/2005 - ] | ||

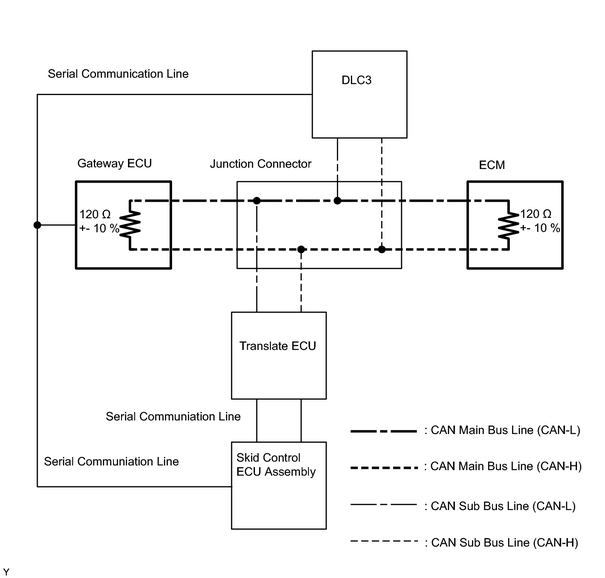

SYSTEM DIAGRAM
HINT:
The ECM uses the CAN communication system to perform DTC communication instead of the conventional communication line (SIL).
|
|
