| Last Modified: 6-7-2017 | 6.8:8.0.40 | Doc ID: RM000000XF9008X |
| Model Year Start: 2006 | Model: Land Cruiser | Prod Date Range: [05/2005 - 01/2006] |
| Title: SUPPLEMENTAL RESTRAINT SYSTEM: AIRBAG SYSTEM: TERMINALS OF ECU; 2006 MY Land Cruiser [05/2005 - 01/2006] | ||
TERMINALS OF ECU

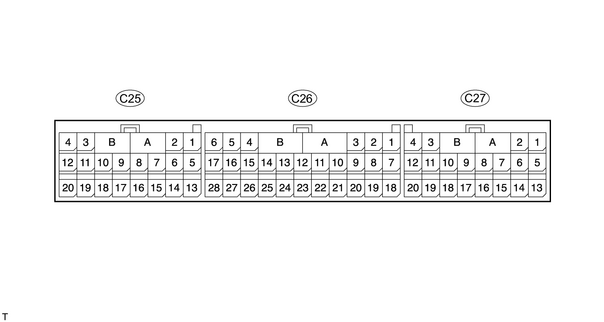

1. CENTER AIRBAG SENSOR ASSEMBLY (w/ Side Airbag)
|
No. |
Symbol |
Terminal Name |
|---|---|---|
|
A |
- |
Electrical Connector Check Mechanism |
|
B |
- |
Electrical Connector Check Mechanism |
|
C26-3 |
LA |
SRS Warning Light |
|
C26-5 |
IG2 |
Power Source |
|
C26-7 |
P2- |
Squib (Passenger, 2nd step) |
|
C26-8 |
P2+ |
Squib (Passenger, 2nd step) |
|
C38-9 |
+SR |
Front Airbag Sensor RH |
|
C26-10 |
P+ |
Squib (Passenger) |
|
C26-11 |
P- |
Squib (Passenger) |
|
C26-12 |
SIL |
Diagnosis |
|
C26-13 |
D- |
Squib (Driver) |
|
C26-14 |
D+ |
Squib (Driver) |
|
C26-15 |
+SL |
Front Airbag Sensor LH |
|
C26-16 |
D2+ |
Squib (Driver, 2nd step) |
|
C26-17 |
D2- |
Squib (Driver, 2nd step) |
|
C26-19 |
TC |
Diagnosis |
|
C26-20 |
-SR |
Front Airbag Sensor RH |
|
C26-21 |
RMSW |
RSCA Off Switch |
|
C26-22 |
MPX2 |
Instrument Panel Integration ECU |
|
C26-23 |
GSW2 |
Diagnosis |
|
C26-25 |
RMIL |
RSCA Off Switch Indicator |
|
C26-26 |
-SL |
Front Airbag Sensor LH |
|
C26-27 |
E1 |
Ground |
|
C26-28 |
E2 |
Ground |
|
C25-1 |
CSL- |
Curtain Shield Airbag Assembly LH |
|
C25-3 |
LSP- |
Seat Position Sensor Assembly |
|
C25-4 |
LSP+ |
Seat Position Sensor Assembly |
|
C25-7 |
PL- |
Squib (Seat Belt Pretensioner, LH) |
|
C25-8 |
PL+ |
Squib (Seat Belt Pretensioner, LH) |
|
C25-9 |
ICL+ |
Squib (Curtain Shield, LH) |
|
C25-10 |
ICL- |
Squib (Curtain Shield, LH) |
|
C25-11 |
SFL- |
Squib (Side, LH) |
|
C25-12 |
SFL+ |
Squib (Side, LH) |
|
C25-13 |
ESCL |
Curtain Shield Airbag Sensor Assembly LH |
|
C25-14 |
VUCL |
Curtain Shield Airbag Sensor Assembly LH |
|
C25-15 |
CSL+ |
Curtain Shield Airbag Sensor Assembly LH |
|
C25-16 |
VUPL |
Side and Curtain Shield Airbag Sensor Assembly LH |
|
C25-17 |
SSL+ |
Side and Curtain Shield Airbag Sensor Assembly LH |
|
C25-18 |
ESL |
Side and Curtain Shield Airbag Sensor Assembly LH |
|
C25-19 |
LBE+ |
Seat Belt Buckle Switch LH |
|
C25-20 |
SSL- |
Side and Curtain Shield Airbag Sensor Assembly LH |
|
C27-4 |
CSR- |
Curtain Shield Airbag Sensor Assembly RH |
|
C27-5 |
SFR+ |
Squib (Side, RH) |
|
C27-6 |
SFR- |
Squib (Side, RH) |
|
C27-7 |
ICR- |
Squib (Curtain Shield, RH) |
|
C27-8 |
ICR+ |
Squib (Curtain Shield, RH) |
|
C27-9 |
PR+ |
Squib (Seat Belt Pretensioner, RH) |
|
C27-10 |
PR- |
Squib (Seat Belt Pretensioner, RH) |
|
C27-13 |
SSR- |
Side and Curtain Shield Airbag Sensor Assembly RH |
|
C27-15 |
ESR |
Side and Curtain Shield Airbag Sensor Assembly RH |
|
C27-16 |
SSR+ |
Side and Curtain Shield Airbag Sensor Assembly RH |
|
C27-17 |
VUPR |
Side and Curtain Shield Airbag Sensor Assembly RH |
|
C27-18 |
CSR+ |
Curtain Shield Airbag Sensor Assembly RH |
|
C27-19 |
VUCR+ |
Curtain Shield Airbag Sensor Assembly RH |
|
C27-20 |
ESCR |
Curtain Shield Airbag Sensor Assembly RH |

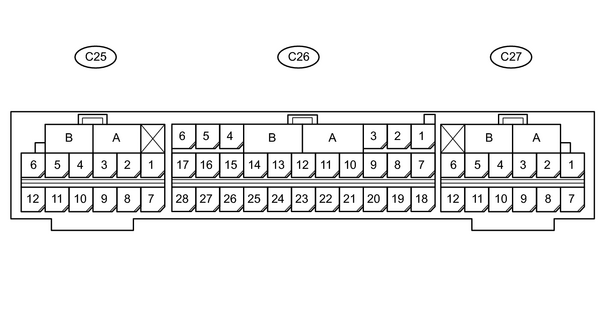

2. CENTER AIRBAG SENSOR ASSEMBLY (w/o Side Airbag)
|
No. |
Symbol |
Terminal Name |
|---|---|---|
|
A |
- |
Electrical Connector Check Mechanism |
|
B |
- |
Electrical Connector Check Mechanism |
|
C26-3 |
LA |
SRS Warning Light |
|
C26-5 |
IG2 |
Power Source |
|
C26-7 |
P2- |
Squib (Front passenger, 2nd step) |
|
C26-8 |
P2+ |
Squib (Front passenger, 2nd step) |
|
C38-9 |
+SR |
Front Airbag Sensor RH |
|
C26-10 |
P+ |
Squib (Front passenger) |
|
C26-11 |
P- |
Squib (Front passenger) |
|
C26-12 |
SIL |
Diagnosis |
|
C26-13 |
D- |
Squib (Driver) |
|
C26-14 |
D+ |
Squib (Driver) |
|
C26-15 |
+SL |
Front Airbag Sensor LH |
|
C26-16 |
D2+ |
Squib (Driver, 2nd step) |
|
C26-17 |
D2- |
Squib (Driver, 2nd step) |
|
C26-19 |
TC |
Diagnosis |
|
C26-20 |
-SR |
Front Airbag Sensor RH |
|
C26-23 |
GSW2 |
Diagnosis |
|
C26-26 |
-SL |
Front Airbag Sensor LH |
|
C26-27 |
E1 |
Ground |
|
C26-28 |
E2 |
Ground |
|
C25-1 |
PL- |
Squib (Seat Belt Pretensioner, LH) |
|
C25-2 |
PL+ |
Squib (Seat Belt Pretensioner, LH) |
|
C25-3 |
LSP+ |
Seat Position Sensor Assembly |
|
C25-8 |
LSP- |
Seat Position Sensor Assembly |
|
C25-11 |
LBE+ |
Seat Belt Buckle Switch LH |
|
C27-5 |
PR+ |
Squib (Seat Belt Pretensioner, RH) |
|
C27-6 |
PR- |
Squib (Seat Belt Pretensioner, RH) |
|
|
