| Last Modified: 6-7-2017 | 6.8:8.0.40 | Doc ID: RM0000010NG004X |
| Model Year Start: 2006 | Model: Land Cruiser | Prod Date Range: [05/2005 - ] |
| Title: A750F AUTOMATIC TRANSMISSION: SHIFT LOCK SYSTEM: SYSTEM DIAGRAM; 2006 MY Land Cruiser [05/2005 - ] | ||

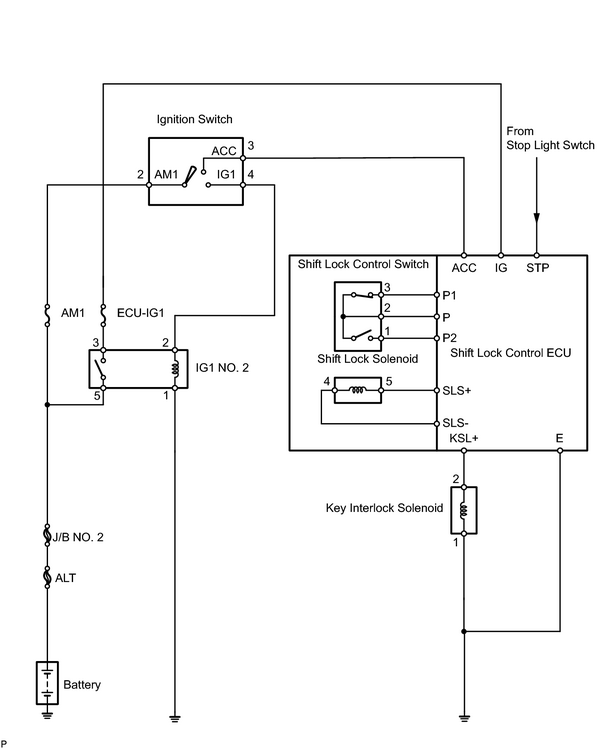

SYSTEM DIAGRAM
|
|
