Last Modified: 6-7-2017 6.8:8.0.40 Doc ID: RM000001258007X
Model Year Start: 2006 Model: Land Cruiser Prod Date Range: [01/2006 -           ]
Title: SUPPLEMENTAL RESTRAINT SYSTEM: AIRBAG SYSTEM: B1152/28; Passenger Airbag ON/OFF Indicator Circuit Malfunction; 2006 MY Land Cruiser [01/2006 -        ]

DTC

B1152/28

Passenger Airbag ON/OFF Indicator Circuit Malfunction

DESCRIPTION

The passenger airbag ON / OFF indicator circuit consists of the center airbag sensor and passenger airbag ON / OFF indicator. This circuit indicates the operation condition of the front passenger airbag, front seat side airbag RH and front seat outer belt RH.

DTC B1152/28 is recorded when a malfunction is detected in the passenger airbag ON / OFF indicator circuit.

DTC No.

DTC Detection Condition

Trouble Area

B1152/28

When one of following conditions is met:

  • The center airbag sensor receives a line short signal, open signal, short to ground signal or B+ short signal in the passenger airbag ON / OFF indicator circuit for 2 seconds.
  • Passenger airbag ON / OFF indicator malfunction
  • Center airbag sensor malfunction
  • Center cluster integration panel*1 (Passenger airbag ON / OFF indicator)
  • Air conditioning control assembly*2 (Passenger airbag ON / OFF indicator)
  • Center airbag sensor assembly
  • Instrument panel wire

HINT:

*1: w/ Navigation system

*2: w/o Navigation system

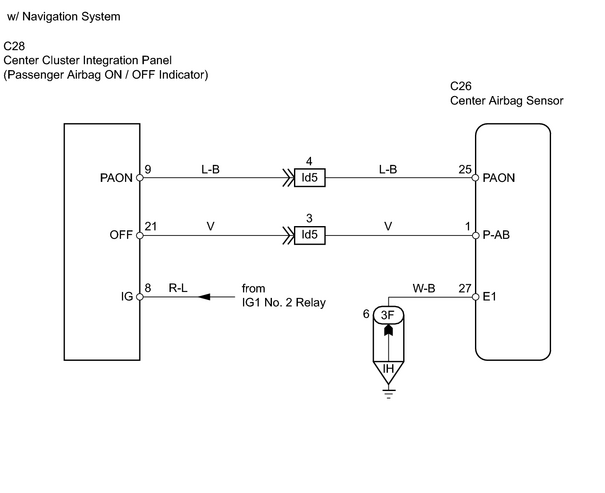

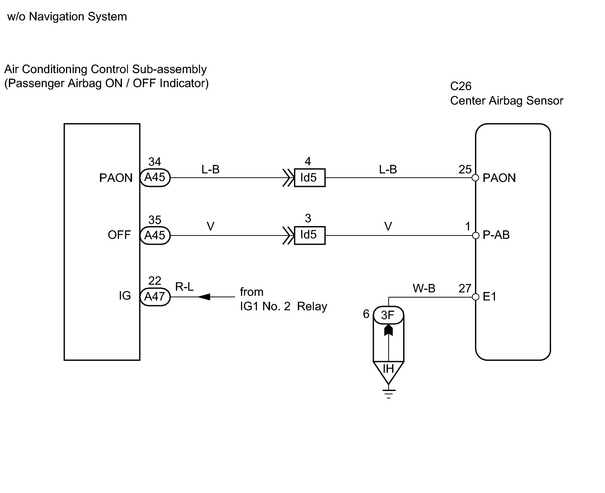

WIRING DIAGRAM

INSPECTION PROCEDURE

PROCEDURE

1.

CHECK PASSENGER AIRBAG ON / OFF INDICATOR OPERATION

(a) Turn the ignition switch ON.

(b) Check the passenger airbag ON / OFF indicator operation.

HINT:

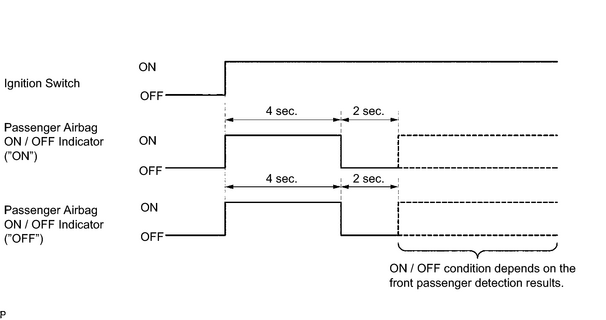

Refer to the normal condition of the passenger airbag ON / OFF indicator 2006 MY Land Cruiser [05/2005 -        ]; SUPPLEMENTAL RESTRAINT SYSTEM: AIRBAG SYSTEM: DIAGNOSIS SYSTEM .

Result

ON / OFF Indicator Illumination

Proceed to

Always ON

A

OFF

B
B

GO TO STEP 10

A

2.

CHECK CONNECTION OF CONNECTOR

(a) Turn the ignition switch OFF.

(b) Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.

(c) Check that the connectors are properly connected to the center airbag sensor and the air conditioning control or center cluster integration panel.

OK:

The connectors are connected.

NG

CONNECT CONNECTOR

OK

3.

CHECK CONNECTOR

(a) Disconnect the connectors from the center airbag sensor and the air conditioning control or center cluster integration panel.

(b) Check that the connectors (on the center airbag sensor side and the air conditioning control side or center cluster integration panel side) are not damaged.

OK:

The connectors are not deformed or damaged.

NG

REPAIR OR REPLACE INSTRUMENT PANEL WIRE

OK

4.

CHECK PASSENGER AIRBAG ON / OFF INDICATOR

(a) Connect the connector to the air conditioning control or center cluster integration panel.

(b) Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.

(c) Turn the ignition switch ON.

(d) Check the passenger airbag ON / OFF indicator operation.

OK:

The passenger airbag ON / OFF indicator ("ON" and "OFF") does not come on.
NG

GO TO STEP 6

OK

5.

CHECK CENTER AIRBAG SENSOR ASSEMBLY

(a) Turn the ignition switch OFF.

(b) Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.

(c) Connect the connector to the center airbag sensor.

(d) Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.

(e) Turn the ignition switch ON, and wait for at least 60 seconds.

(f) Clear the DTCs stored in memory 2006 MY Land Cruiser [05/2005 -        ]; SUPPLEMENTAL RESTRAINT SYSTEM: AIRBAG SYSTEM: DTC CHECK / CLEAR .

(g) Turn the ignition switch OFF.

(h) Turn the ignition switch ON, and wait for at least 60 seconds.

(i) Check the DTCs 2006 MY Land Cruiser [05/2005 -        ]; SUPPLEMENTAL RESTRAINT SYSTEM: AIRBAG SYSTEM: DTC CHECK / CLEAR .

OK:

DTC B1152/28 is not output.

HINT:

Codes other than code B1152/28 may be output at this time, but they are not related to this check.
NG

REPLACE CENTER AIRBAG SENSOR ASSEMBLY

OK

USE SIMULATION METHOD TO CHECK

6.

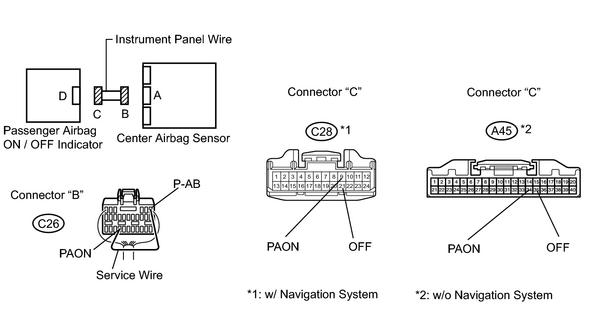

CHECK PASSENGER AIRBAG ON / OFF INDICATOR CIRCUIT (OPEN)

(a) Turn the ignition switch OFF.

(b) Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.

(c) Disconnect the connector from the air conditioning control.

(d) Using a service wire, connect terminals C26-1 (P-AB) and C26-25 (PAON) of connector "B".

(e) Measure the resistance of the wire harness side connector.

Standard resistance:

w/ Navigation system

w/o Navigation system

Tester Connection

Specified Condition

C28-9 (PAON) - C28-21 (OFF)

Below 1 Ω

Tester Connection

Specified Condition

A45-34 (PAON) - A45-35 (OFF)

Below 1 Ω
NG

REPAIR OR REPLACE INSTRUMENT PANEL WIRE

OK

7.

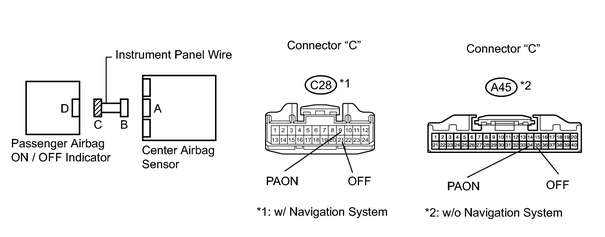

CHECK PASSENGER AIRBAG ON / OFF INDICATOR CIRCUIT (SHORT)

(a) Disconnect the service wire from connector "B".

(b) Measure the resistance of the wire harness side connector.

Standard resistance:

w/ Navigation system

w/o Navigation system

Tester Connection

Specified Condition

C28-9 (PAON) - C28-21 (OFF)

1 MΩ or higher

Tester Connection

Specified Condition

A45-34 (PAON) - A45-35 (OFF)

1 MΩ or higher
NG

REPAIR OR REPLACE INSTRUMENT PANEL WIRE

OK

8.

CHECK PASSENGER AIRBAG ON / OFF INDICATOR CIRCUIT (SHORT TO GROUND)

(a) Measure the resistance of the wire harness side connector.

Standard resistance:

w/ Navigation system

w/o Navigation system

Tester Connection

Specified Condition

C28-9 (PAON) - Body ground

1 MΩ or higher

C28-21 (OFF) - Body ground

1 MΩ or higher

Tester Connection

Specified Condition

A45-34 (PAON) - Body ground

1 MΩ or higher

A45-35 (OFF) - Body ground

1 MΩ or higher
NG

REPAIR OR REPLACE INSTRUMENT PANEL WIRE

OK

9.

CHECK PASSENGER AIRBAG ON / OFF INDICATOR CIRCUIT (SHORT TO B+)

(a) Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.

(b) Turn the ignition switch ON.

(c) Measure the voltage of the wire harness side connector.

Standard voltage:

w/ Navigation system

w/o Navigation system

Tester Connection

Specified Condition

C28-9 (PAON) - Body ground

Below 1 V

C28-21 (OFF) - Body ground

Below 1 V

Tester Connection

Specified Condition

A45-34 (PAON) - Body ground

Below 1 V

A45-35 (OFF) - Body ground

Below 1 V
OK

REPAIR OR REPLACE INSTRUMENT PANEL WIRE

NG

REPLACE AIR CONDITIONING CONTROL ASSEMBLY

10.

CHECK CONNECTION OF CONNECTOR

(a) Turn the ignition switch OFF.

(b) Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.

(c) Check that the connectors are properly connected to the center airbag sensor and the air conditioning control.

OK:

The connectors are connected.

NG

CONNECT CONNECTOR

OK

11.

CHECK CONNECTOR

(a) Disconnect the connectors from the center airbag sensor and the air conditioning control.

(b) Check that the connectors (on the center airbag sensor side and the air conditioning control side) are not damaged.

OK:

The connectors are not deformed or damaged.

NG

REPAIR OR REPLACE INSTRUMENT PANEL WIRE

OK

12.

CHECK PASSENGER AIRBAG ON / OFF INDICATOR CIRCUIT (OPEN)

(a) Turn the ignition switch OFF.

(b) Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.

(c) Disconnect the connector from the air conditioning control.

(d) Using a service wire, connect terminals C26-1 (P-AB) and C26-25 (PAON) of connector "B".

(e) Measure the resistance of the wire harness side connector.

Standard resistance:

w/ Navigation system

w/o Navigation system

Tester Connection

Specified Condition

C28-9 (PAON) - C28-21 (OFF)

Below 1 Ω

Tester Connection

Specified Condition

A45-34 (PAON) - A45-35 (OFF)

Below 1 Ω
NG

REPAIR OR REPLACE INSTRUMENT PANEL WIRE

OK

13.

CHECK PASSENGER AIRBAG ON / OFF INDICATOR CIRCUIT (SHORT)

(a) Disconnect the service wire from connector "B".

(b) Measure the resistance of the wire harness side connector.

Standard resistance:

w/ Navigation system

w/o Navigation system

Tester Connection

Specified Condition

C28-9 (PAON) - C28-21 (OFF)

1 MΩ or higher

Tester Connection

Specified Condition

A45-34 (PAON) - A45-35 (OFF)

1 MΩ or higher
NG

REPAIR OR REPLACE INSTRUMENT PANEL WIRE

OK

14.

CHECK PASSENGER AIRBAG ON / OFF INDICATOR CIRCUIT (SHORT TO GROUND)

(a) Measure the resistance of the wire harness side connector.

Standard resistance:

w/ Navigation system

w/o Navigation system

Tester Connection

Specified Condition

C28-9 (PAON) - Body ground

1 MΩ or higher

C28-21 (OFF) - Body ground

1 MΩ or higher

Tester Connection

Specified Condition

A45-34 (PAON) - Body ground

1 MΩ or higher

A45-35 (OFF) - Body ground

1 MΩ or higher
NG

REPAIR OR REPLACE INSTRUMENT PANEL WIRE

OK

15.

CHECK PASSENGER AIRBAG ON / OFF INDICATOR CIRCUIT (SHORT TO B+)

(a) Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.

(b) Turn the ignition switch ON.

(c) Measure the voltage of the wire harness side connector.

Standard voltage:

w/ Navigation system

w/o Navigation system

Tester Connection

Specified Condition

C28-9 (PAON) - Body ground

Below 1 V

C28-21 (OFF) - Body ground

Below 1 V

Tester Connection

Specified Condition

A45-34 (PAON) - Body ground

Below 1 V

A45-35 (OFF) - Body ground

Below 1 V
NG

REPAIR OR REPLACE INSTRUMENT PANEL WIRE

OK

16.

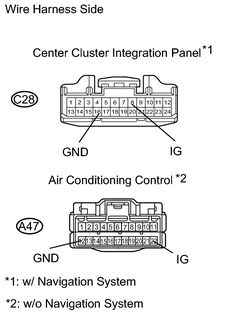

CHECK WIRE HARNESS (ON / OFF INDICATOR - POWER SOURCE)

(a) Turn the ignition switch ON.

(b) Measure the voltage and resistance of the wire harness side connector.

Standard voltage:

w/ Navigation system

w/o Navigation system

Tester Connection

Specified Condition

C28-8 (IG) - Body ground

10 to 14 V

Tester Connection

Specified Condition

A47-22 (IG) - Body ground

10 to 14 V

Standard resistance:

w/ Navigation system

w/o Navigation system

Tester Connection

Specified Condition

C28-16 (GND) - Body ground

1 MΩ or higher

Tester Connection

Specified Condition

A47-12 (GND) - Body ground

1 MΩ or higher
NG

REPAIR OR REPLACE POWER SOURCE CIRCUIT

OK

17.

CHECK PASSENGER AIRBAG ON / OFF INDICATOR

(a) Turn the ignition switch OFF.

(b) Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.

(c) Connect the connector to the air conditioning control.

(d) Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.

(e) Turn the ignition switch ON.

(f) Check the passenger airbag ON / OFF indicator condition.

OK:

Tester Connection

Passenger Airbag ON / OFF Indicator Condition

C26-25 (PAON) - Body ground

"ON" comes on

C26-1 (P-AB) - Body ground

"OFF" comes on

Result:

Result

Proceed to

OK

A

NG (w/ Navigation System)

B

NG (w/o Navigation System)

C
B

REPLACE CENTER CLUSTER INTEGRATION SWITCH ASSEMBLY

C

REPLACE AIR CONDITIONING CONTROL ASSEMBLY

A

18.

CHECK CENTER AIRBAG SENSOR ASSEMBLY

(a) Turn the ignition switch OFF.

(b) Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.

(c) Connect the connector to the center airbag sensor.

(d) Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.

(e) Turn the ignition switch ON, and wait for at least 60 seconds.

(f) Clear the DTCs stored in memory 2006 MY Land Cruiser [05/2005 -        ]; SUPPLEMENTAL RESTRAINT SYSTEM: AIRBAG SYSTEM: DTC CHECK / CLEAR .

(g) Turn the ignition switch OFF.

(h) Turn the ignition switch ON, and wait for at least 60 seconds.

(i) Check the DTCs 2006 MY Land Cruiser [05/2005 -        ]; SUPPLEMENTAL RESTRAINT SYSTEM: AIRBAG SYSTEM: DTC CHECK / CLEAR .

OK:

DTC B1152/28 is not output.

HINT:

Codes other than code B1152/28 may be output at this time, but they are not related to this check.

NG

REPLACE CENTER AIRBAG SENSOR ASSEMBLY

OK

USE SIMULATION METHOD TO CHECK
