TERMINALS OF ECU

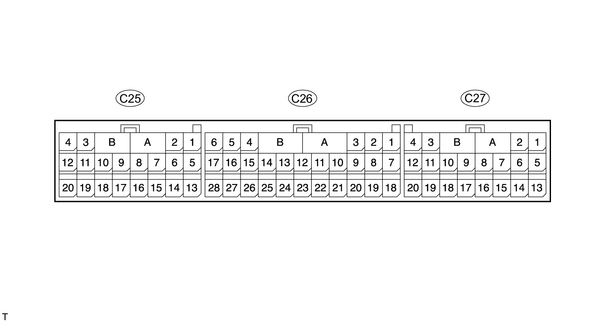

1. CENTER AIRBAG SENSOR ASSEMBLY (w/ Side and Curtain Shield Airbag)
|
Terminal No. |
Terminal Symbol |
Terminal Description |
|---|---|---|
|
A |
- |
Half Connection Detection Mechanism |
|
B |
- |
Half Connection Detection Mechanism |
|
C25-1 |
CSL- |
Rear Airbag Sensor LH |
|
C25-2 |
LBE- |
Front Seat Inner Belt LH (Seat Belt Buckle Switch LH) |
|
C25-3 |
LSP- |
Seat Position Sensor |
|
C25-4 |
LSP+ |
Seat Position Sensor |
|
C25-7 |
PL- |
Front Seat Outer Belt LH (Front Pretensioner Squib LH) |
|
C25-8 |
PL+ |
Front Seat Outer Belt LH (Front Pretensioner Squib LH) |
|
C25-9 |
ICL+ |
Curtain Shield Airbag LH (Curtain Shield Squib LH) |
|
C25-10 |
ICL- |
Curtain Shield Airbag LH (Curtain Shield Squib LH) |
|
C25-11 |
SFL- |
Front Seat Side Airbag (Side Squib LH) |
|
C25-12 |
SFL+ |
Front Seat Side Airbag (Side Squib LH) |
|
C25-13 |
ESCL |
Rear Airbag Sensor LH |
|
C25-14 |
VUCL |
Rear Airbag Sensor LH |
|
C25-15 |
CSL+ |
Rear Airbag Sensor LH |
|
C25-16 |
VUPL |
Side Airbag Sensor LH |
|
C25-17 |
SSL+ |
Side Airbag Sensor LH |
|
C25-18 |
ESL |
Side Airbag Sensor LH |
|
C25-19 |
LBE+ |
Front Seat Inner Belt LH (Seat Belt Buckle Switch LH) |
|
C25-20 |
SSL- |
Side Airbag Sensor LH |
|
C26-1 |
P-AB |
Passenger Airbag ON / OFF Indicator |
|
C26-2 |
PBEW |
Passenger side seat belt indicator |
|
C26-3 |
LA |
Combination Meter |
|
C26-5 |
IG2 |
IGN Fuse |
|
C26-6 |
RMIL |
Combination Meter |
|
C26-7 |
P2- |
Front Passenger Airbag (Passenger Side Squib 2nd Step) |
|
C26-8 |
P2+ |
Front Passenger Airbag (Passenger Side Squib 2nd Step) |
|
C26-9 |
+SR |
Front Airbag Sensor RH |
|
C26-10 |
P+ |
Front Passenger Airbag (Passenger Side Squib) |
|
C26-11 |
P- |
Front Passenger Airbag (Passenger Side Squib) |
|
C26-12 |
SIL |
DLC3 |
|
C26-13 |
D- |
Steering Pad (Driver Side Squib) |
|
C26-14 |
D+ |
Steering Pad (Driver Side Squib) |
|
C26-15 |
+SL |
Front Airbag Sensor LH |
|
C26-16 |
D2+ |
Steering Pad (Driver Side Squib 2nd Step) |
|
C26-17 |
D2- |
Steering Pad (Driver Side Squib 2nd Step) |
|
C26-19 |
TC |
DLC3 |
|
C26-20 |
-SR |
Front Airbag Sensor RH |
|
C26-21 |
RMSW |
RSCA OFF Switch |
|
C26-25 |
PAON |
Passenger Airbag ON / OFF Indicator |
|
C26-26 |
-SL |
Front Airbag Sensor LH |
|
C26-27 |
E1 |
Ground |
|
C26-28 |
E2 |
Ground |
|
C27-1 |
FSR+ |
Occupant Classification ECU |
|
C27-2 |
FSR- |
Occupant Classification ECU |
|
C27-4 |
CSR- |
Rear Airbag Sensor RH |
|
C27-5 |
SFR+ |
Front Seat Side Airbag (Side Squib RH) |
|
C27-6 |
SFR- |
Front Seat Side Airbag (Side Squib RH) |
|
C27-7 |
ICR- |
Curtain Shield Airbag RH (Curtain Shield Squib RH) |
|
C27-8 |
ICR+ |
Curtain Shield Airbag RH (Curtain Shield Squib RH) |
|
C27-9 |
PR+ |
Front Seat Outer Belt RH (Front Pretensioner Squib RH) |
|
C27-10 |
PR- |
Front Seat Outer Belt RH (Front Pretensioner Squib RH) |
|
C27-13 |
SSR- |
Side Airbag Sensor RH |
|
C27-15 |
ESR |
Side Airbag Sensor RH |
|
C27-16 |
SSR+ |
Side Airbag Sensor RH |
|
C27-17 |
VUPR |
Side Airbag Sensor RH |
|
C27-18 |
CSR+ |
Rear Airbag Sensor RH |
|
C27-19 |
VUCR |
Rear Airbag Sensor RH |
|
C27-20 |
ESCR |
Rear Airbag Sensor RH |

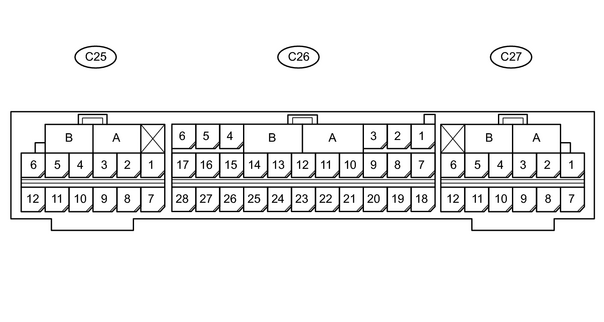

2. CENTER AIRBAG SENSOR ASSEMBLY (w/o Side and Curtain Shield Airbag)
|
Terminal No. |
Terminal Symbol |
Terminal Description |
|---|---|---|
|
A |
- |
Half Connection Detection Mechanism |
|
B |
- |
Half Connection Detection Mechanism |
|
C25-1 |
PL- |
Front Seat Outer Belt LH (Front Pretensioner Squib LH) |
|
C25-2 |
PL+ |
Front Seat Outer Belt LH (Front Pretensioner Squib LH) |
|
C25-3 |
LSP+ |
Seat Position Sensor |
|
C25-7 |
LBE- |
Front Seat Inner Belt LH (Seat Belt Buckle Switch LH) |
|
C25-8 |
LSP- |
Seat Position Sensor |
|
C25-11 |
LBE+ |
Front Seat Inner Belt LH (Seat Belt Buckle Switch LH) |
|
C26-1 |
P-AB |
Passenger Airbag OFF Indicator |
|
C26-2 |
PBEW |
Passenger side seat belt indicator |
|
C26-3 |
LA |
Combination Meter |
|
C26-5 |
IG2 |
IGN Fuse |
|
C26-7 |
P2- |
Front Passenger Airbag (Passenger Side Squib 2nd Step) |
|
C26-8 |
P2+ |
Front Passenger Airbag (Passenger Side Squib 2nd Step) |
|
C26-9 |
+SR |
Front Airbag Sensor RH |
|
C26-10 |
P+ |
Front Passenger Airbag (Passenger Side Squib) |
|
C26-11 |
P- |
Front Passenger Airbag (Passenger Side Squib) |
|
C26-12 |
SIL |
DLC3 |
|
C26-13 |
D- |
Steering Pad (Driver Side Squib) |
|
C26-14 |
D+ |
Steering Pad (Driver Side Squib) |
|
C26-15 |
+SL |
Front Airbag Sensor LH |
|
C26-16 |
D2+ |
Steering Pad (Driver Side Squib 2nd Step) |
|
C26-17 |
D2- |
Steering Pad (Driver Side Squib 2nd Step) |
|
C26-19 |
TC |
DLC3 |
|
C26-20 |
-SR |
Front Airbag Sensor RH |
|
C26-25 |
PAON |
Passenger Airbag ON Indicator |
|
C26-26 |
-SL |
Front Airbag Sensor LH |
|
C26-27 |
E1 |
Ground |
|
C26-28 |
E2 |
Ground |
|
C27-3 |
FSR+ |
Occupant Classification ECU |
|
C27-5 |
PR+ |
Front Seat Outer Belt RH (Front Pretensioner Squib RH) |
|
C27-6 |
PR- |
Front Seat Outer Belt RH (Front Pretensioner Squib RH) |
|
C27-10 |
FSR- |
Occupant Classification ECU |
|
|
