SRS Warning Light Remains ON |
DESCRIPTION
The SRS warning light is located on the combination meter.
When the SRS is normal, the SRS warning light comes on for approximately 6 seconds after the ignition switch is turned from the LOCK position to ON position, and then turns off automatically.
If there is a malfunction in the SRS, the SRS warning light lights up to inform the driver of the abnormality.
When terminal TC and CG of the DLC3 are connected, the DTC is indicated by blinking the SRS warning light.

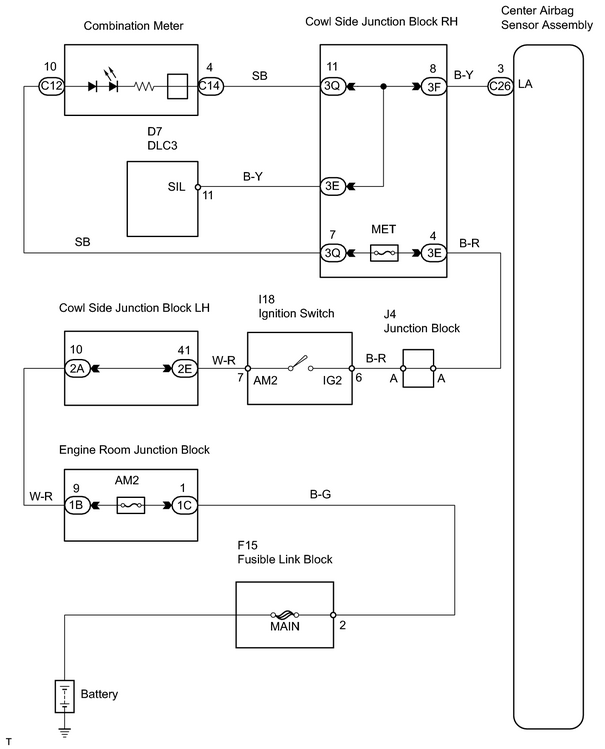

WIRING DIAGRAM
INSPECTION PROCEDURE
PROCEDURE
|
1. |
CHECK CONNECTION OF CONNECTOR |
(a) Disconnect the negative (-) terminal cable from the battery, and wait at least for 90 seconds.
(b) Check that the connectors are properly connected to the center airbag sensor.
OK:
Connectors are connected.
| NG |
|
|
|
2. |
CHECK FOR DTC |
(a) Connect the negative (-) terminal cable to the battery, and wait at least for 90 seconds.
(b)
Check for DTC
![2006 MY Land Cruiser [05/2005 - ]; SUPPLEMENTAL RESTRAINT SYSTEM: AIRBAG SYSTEM: DTC CHECK / CLEAR](../../../../stylegraphics/info.gif "2006 MY Land Cruiser [05/2005 - ]; SUPPLEMENTAL RESTRAINT SYSTEM: AIRBAG SYSTEM: DTC CHECK / CLEAR")
.
OK:
DTC is not output.
| NG |
|
|
|
3. |
CHECK WIRE HARNESS (CENTER AIRBAG SENSOR ASSEMBLY - COMBINATION METER ASSEMBLY AND BODY GROUND) |
|
(a) Disconnect the negative (-) terminal cable from the battery, and wait at least for 90 seconds. (b) Disconnect the C14 combination meter connector. (c) Disconnect the C26 center airbag sensor connector. (d) Measure the resistance of the wire harness side connectors. Standard resistance:
|
|
| NG |
|
|
|
4. |
CHECK WIRE HARNESS (CENTER AIRBAG SENSOR ASSEMBLY - BATTERY) |
|

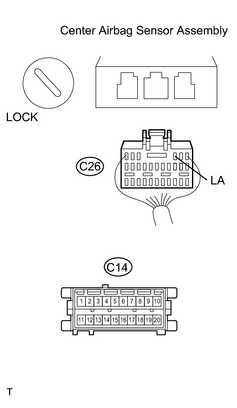

(a) Connect the negative (-) terminal cable to the battery, and wait at least for 2 seconds. (b) Turn the ignition switch to ON. (c) Measure the voltage between the body ground and C26-3 (LA) of the center airbag sensor connector. Standard voltage: below 1 V |
|
| NG |
|
|
|
5. |
CHECK COMBINATION METER ASSEMBLY |
|
(a) Disconnect the negative (-) terminal cable from the battery, and wait at least for 90 seconds. (b) Connect the C14 combination meter connector. (c) Connect the negative (-) terminal cable to the battery, and wait at least for 2 seconds. (d) Turn the ignition switch to ON. (e) Measure the voltage between the C26-3 (LA) and body ground of the center airbag sensor connector. Standard voltage: 10 to 14 V |
|
| NG |
|
|
|
6. |
CHECK SRS WARNING LIGHT |
|
(a) Turn the ignition switch to LOCK, and wait for at least 60 seconds. (b) Turn the ignition switch to ON. (c) Check operation of SRS warning light. OK: SRS warning light comes on. |
|
| NG |
|
| OK |
|
|
|
