TERMINALS OF ECU

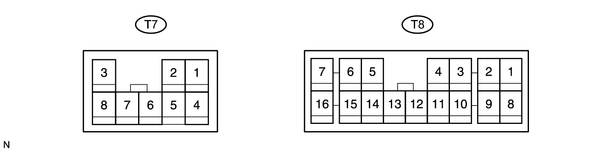

1. CHECK TILT AND TELESCOPIC ECU
|
Symbols (Terminal No.) |
Wiring Color |
Terminal Description |
Condition |
Specified Condition |
|---|---|---|---|---|
|
ECUB (T7-1) - Body ground |
L-W - Body ground |
Battery |
Always |
10 to 14 V |
|
ECUB (T7-1) - GND (T7-6) |
L-W - W-B |
Battery |
Always |
10 to 14 V |
|
VC (T7-2) - GND (T7-6) |
V - W-B |
Manual switch output signal |
Always |
4.5 to 5.5 V |
|
IG (T7-4) - GND (T7-6) |
B-W - W-B |
Ignition switch |
Ignition switch ON |
10 to 14 V |
|
IG (T7-4) - GND (T7-6) |
B-W - W-B |
Ignition switch |
Ignition switch LOCK |
Below 1 V |
|
MSW (T7-5) - GND (T7-6) |
V-Y - W-B |
Manual switch input signal |
Tilt up by manual switch |
1.30 to 1.70 V |
|
MSW (T7-5) - GND (T7-6) |
V-Y - W-B |
Manual switch input signal |
Tilt down by manual switch |
0.30 to 0.50 V |
|
MSW (T7-5) - GND (T7-6) |
V-Y - W-B |
Manual switch input signal |
Telescopic extended by manual switch |
2.05 to 2.75 V |
|
MSW (T7-5) - GND (T7-6) |
V-Y - W-B |
Manual switch input signal |
Telescopic contracted by manual switch |
0.65 to 0.95 V |
|
MSW (T7-5) - GND (T7-6) |
V-Y - W-B |
Manual switch input signal |
Manual switch is not operating |
Below 0.20 V |
|
GND (T7-6) - Body ground |
W-B - Body ground |
Body ground |
Always |
Below 1 Ω |
|
A2 (T8-1) - COM2 (T8-9) |
W - B |
Power telescopic motor |
Telescopic motor is operating |
190 to 230 V (AC) |
|
+B (T8-4) - GND (T7-6) |
G-B - W-B |
Battery |
Always |
10 to 14 V |
|
A1 (T8-7) - COM1 (T8-15) |
V - G |
Power tilt motor |
Tilt motor is operating |
190 to 230 V (AC) |
|
B2 (T8-8) - COM2 (T8-9) |
G - B |
Power telescopic motor |
Telescopic motor is operating |
190 to 230 V (AC) |
|
S5V2 (T8-12) - SG2 (T8-10) |
B-W - B-Y |
Power telescopic motor |
Ignition switch ON |
4.5 to 5.5 V |
|
S5V1 (T8-13) - SG1 (T8-14) |
G-W - G-Y |
Power tilt motor |
Ignition switch ON |
4.5 to 5.5 V |
|
B1 (T8-16) - COM1 (T8-15) |
V - G |
Power tilt motor |
Tilt motor is operating |
190 to 230 V (AC) |
|
|
