Title: LIGHTING: LIGHTING SYSTEM: B1244; Light Sensor Circuit Malfunction; 2006 MY Land Cruiser [05/2005 -        ]

DTC

B1244

Light Sensor Circuit Malfunction

DESCRIPTION

This DTC is output when failure of the light control sensor circuit is detected.

DTC No.

DTC Detection Condition

Trouble Area

B1244
  • Malfunction of light sensor
  • Open or short light sensor circuit
  • Automatic light control sensor
  • Body ECU
  • Wire harness

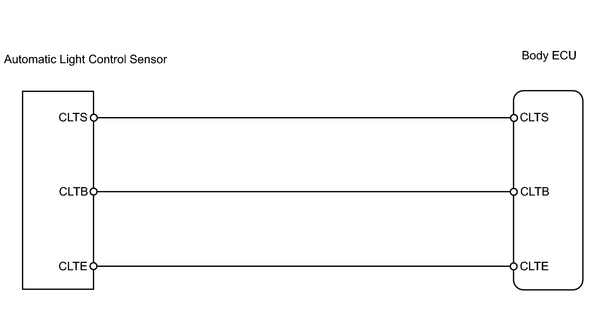

WIRING DIAGRAM

INSPECTION PROCEDURE

HINT:

When using the intelligent tester, start from *1. When not using the intelligent tester, start from *2.

PROCEDURE

1.

READ VALUE USING INTELLIGENT TESTER (LIGHT CONTROL SENSOR)*1

(a) Connect the intelligent tester (with CAN VIM) to the DLC3.

(b) Check that the light control sensor operates in DATA LIST 2006 MY Land Cruiser [05/2005 -        ]; LIGHTING: LIGHTING SYSTEM: DATA LIST / ACTIVE TEST .

OK

REPLACE BODY ECU

NG

2.

CHECK AUTOMATIC LIGHT CONTROL SENSOR*2

(a) Turn the ignition switch ON and intent tester main switch on.

(b) The value of the illumination rate should change in the following range when the light sensor is put in the light or covered by a hand.

OK:

0.8 to 22.0 ms

HINT:

This is the time to be taken for the light sensor to generate one circle of frequency according to the brightness.

NG

REPLACE AUTOMATIC LIGHT CONTROL SENSOR

OK

3.

CHECK WIRE HARNESS (BODY ECU - AUTOMATIC LIGHT CONTROL SENSOR)
NG

REPAIR OR REPLACE HARNESS AND CONNECTOR

OK

REPLACE BODY ECU
