TERMINALS OF ECU

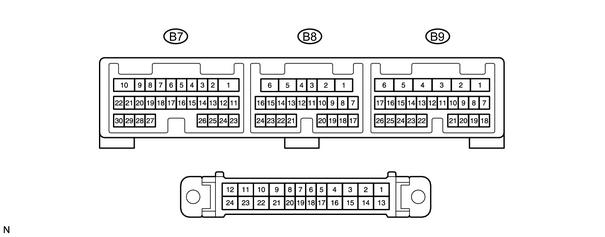

1. CHECK MAIN BODY ECU
|
Symbols (Terminal No.) |
Wiring Color |
Condition |
Specified Condition |
|---|---|---|---|
|
BECU (11) - Body ground |
- - Body ground |
Always |
11 to 14 V |
|
SIG (10) - Body ground |
- - Body ground |
Ignition switch ON |
11 to 14 V |
|
GND1 (4) - Body ground |
- - Body ground |
Always |
Below 1 Ω |
|
GND2 (16) - Body ground |
- - Body ground |
Always |
Below 1 Ω |
|
DBKL (B7-13) - Body ground |
G - Body ground |
Driver seat buckle switch is on (seat belt is fastened) |
Below 1 V |
|
|
