Last Modified: 6-7-2017 6.8:8.0.40 Doc ID: RM000001AFN000X
Model Year Start: 2006 Model: Land Cruiser Prod Date Range: [05/2005 -           ]
Title: LIGHTING: HAZARD WARNING SWITCH: ON-VEHICLE INSPECTION; 2006 MY Land Cruiser [05/2005 -        ]

ON-VEHICLE INSPECTION

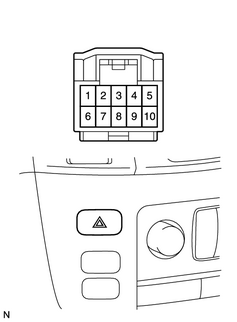

1. INSPECT HAZARD WARNING SWITCH ASSEMBLY

(a) Measure the continuity of the switch.

OK:

Tester Connection

Switch Position

Specified Condition

3 - 5

Pushed

Continuity

Not pushed

No continuity

If the result is not as specified, replace the switch assembly.
