LIGHTING: FOG LIGHT ASSEMBLY: ON-VEHICLE INSPECTION; 2006 MY Land Cruiser [05/2005

Last Modified: 6-7-2017	6.8:8.0.40	Doc ID: RM000001AFP000X
Model Year Start: 2006	Model: Land Cruiser	Prod Date Range: [05/2005 - ]
Title: LIGHTING: FOG LIGHT ASSEMBLY: ON-VEHICLE INSPECTION; 2006 MY Land Cruiser [05/2005 - ]

ON-VEHICLE INSPECTION

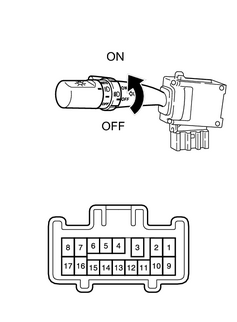

1. INSPECT FOG LIGHT SWITCH

(a) Measure the continuity of the switch.

Standard continuity:

Tester Connection	Switch Position	Specified Condition
10 - 11	ON	Continuity
10 - 11	OFF	No continuity

If the result is not as specified, replace the switch assembly.
