Last Modified: 6-7-2017 6.8:8.0.40 Doc ID: RM000001AFQ000X
Model Year Start: 2006 Model: Land Cruiser Prod Date Range: [05/2005 -           ]
Title: LIGHTING: LIGHT CONTROL SWITCH: ON-VEHICLE INSPECTION; 2006 MY Land Cruiser [05/2005 -        ]

ON-VEHICLE INSPECTION

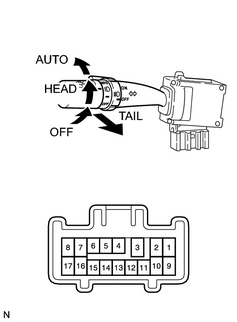

1. INSPECT HEADLIGHT CONTROL SWITCH

(a) Measure the continuity of the switch.

OK:

Tester Connection

Switch Position

Specified Condition

14 - 16

TAIL

Continuity

13 - 14 - 16

HEAD

12 - 16

AUTO

-

OFF

No continuity

If the result is not as specified, replace the headlight dimmer switch assembly.

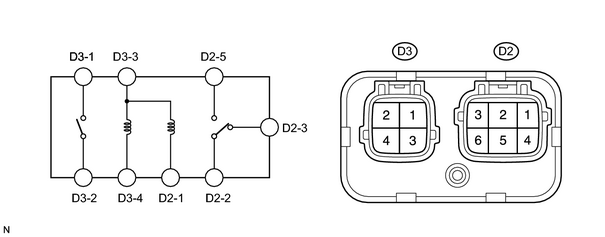

2. INSPECT DAYTIME RUNNING LIGHT RELAY

(a) Measure the continuity of the relay.

OK:

Tester Connection

Condition

Specified Condition

D2-2 - D2-3

Always

Continuity

D2-2 - D2-5

Apply battery positive voltage between terminals D2-1 and D3-3

D3-1 - D3-2

Apply battery positive voltage between terminals D3-3 and D3-4

If the result is not as specified, replace the relay.
