ON-VEHICLE INSPECTION
|

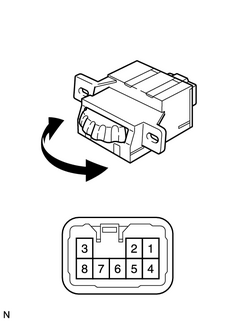

1. INSPECT LIGHT CONTROL RHEOSTAT (a) Turn the rheostat knob OFF, and check that there is no continuity between terminal 5 and 4 (Rheostat knob turned to fully counterclockwise). (b) Gradually turn the rheostat knob from the dark side to bright side, and check that there is continuity between terminal 5 and 4 (Rheostat knob turned clockwise). If operation is not as specified, replace the rheostat. |
|
|
|
