Last Modified: 6-7-2017 6.8:8.0.40 Doc ID: RM000001BB8000X
Model Year Start: 2006 Model: Land Cruiser Prod Date Range: [05/2005 -           ]
Title: LIGHTING: TURN SIGNAL LIGHT SWITCH: INSPECTION; 2006 MY Land Cruiser [05/2005 -        ]

INSPECTION

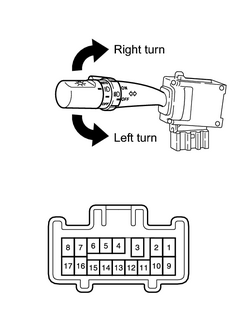

1. INSPECT TURN SIGNAL SWITCH

(a) Measure the continuity of the switch.

OK:

Tester Connection

Condition

Specified Condition

7 - 8

Left turn

Continuity

6 - 7

Right turn

-

Neutral

No continuity

If the result is not as specified, replace the headlight dimmer switch assembly.
