- Tire pressure antenna
| Last Modified: 6-7-2017 | 6.8:8.0.40 | Doc ID: RM000001CF6000X |
| Model Year Start: 2006 | Model: Land Cruiser | Prod Date Range: [05/2005 - ] |
| Title: TIRE AND WHEEL: TIRE PRESSURE WARNING SYSTEM: C2195/95; Multi-receiver Antenna Circuit (Test Mode DTC); 2006 MY Land Cruiser [05/2005 - ] | ||
|
DTC |
C2195/95 |
Multi-receiver Antenna Circuit (Test Mode DTC) |
DESCRIPTION
|
DTC No. |
DTC Detecting Condition |
Trouble Area |
|---|---|---|
|
C2195/95 |
In test mode, tire pressure antenna circuit malfunction occurs |
|

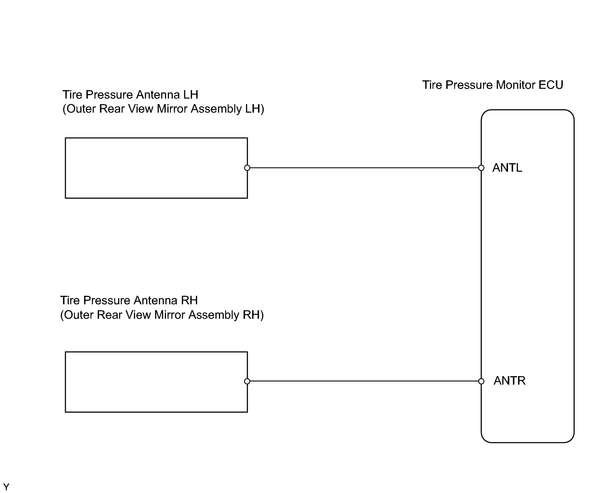

WIRING DIAGRAM
INSPECTION PROCEDURE
NOTICE:
It is necessary to register an ID code after replacing the tire pressure monitor valve sub-assembly and / or the tire pressure monitor ECU
![2006 MY Land Cruiser [05/2005 - ]; TIRE AND WHEEL: TIRE PRESSURE WARNING SYSTEM: REGISTRATION](../../../../stylegraphics/info.gif "2006 MY Land Cruiser [05/2005 - ]; TIRE AND WHEEL: TIRE PRESSURE WARNING SYSTEM: REGISTRATION")
.
PROCEDURE
|
1. |
CHECK WIRE HARNESS (ANTENNA - ECU) |
|

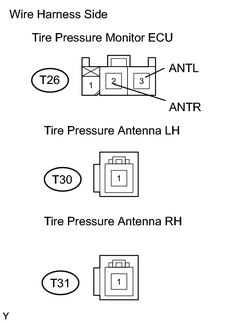

(a) Disconnect the T26 ECU connector. |
|
(b) Disconnect the T30 and T31 antenna connectors.
(c) Measure the resistance of the wire harness side connectors.
Standard resistance:
|
Tester Connection |
Specified Condition |
|---|---|
|
T26-3 (ANTL) - T30-1 |
Below 1 Ω |
|
T26-2 (ANTR) - T31-1 |
Below 1 Ω |
| NG |
|
|
|
2. |
REPLACE OUTER REAR VIEW MIRROR ASSEMBLY (TIRE PRESSURE ANTENNA) |
|
|
3. |
CHECK TEST MODE DTC |
(a)
Check test mode DTC
.
OK:
DTC is not output.
| NG |
|
| OK |
|
|
|
