Last Modified: 6-7-2017 6.8:8.0.40 Doc ID: RM000001CFH000X
Model Year Start: 2006 Model: Land Cruiser Prod Date Range: [05/2005 -           ]
Title: AIR CONDITIONING: AIR CONDITIONING SYSTEM: 26; System Too Rich; 2006 MY Land Cruiser [05/2005 -        ]

DTC

26

System Too Rich

DESCRIPTION

This sensor detects the position of the rear air mix damper and sends the appropriate signals to the rear A/C amplifier.

The position sensor is built into the rear air mix damper control servomotor.

DTC No.

Detection Item

Trouble Area

26

Open or short in rear inlet air temperature sensor circuit
  • Rear inlet air temperature sensor
  • Harness or connector between rear inlet air temperature sensor and rear A/C amplifier
  • Rear A/C amplifier

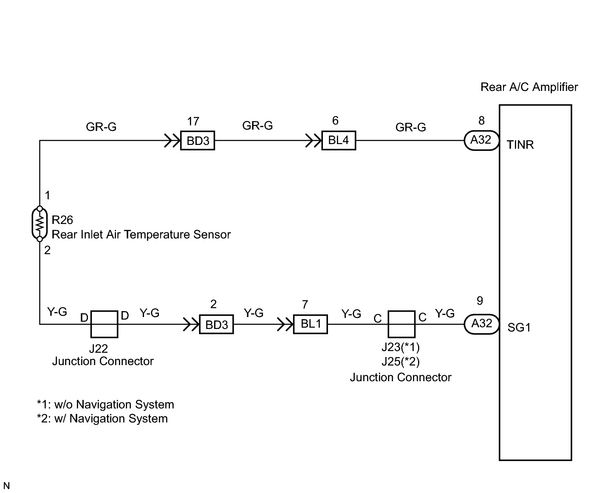

WIRING DIAGRAM

INSPECTION PROCEDURE

PROCEDURE

1.

CHECK REAR AIR CONDITIONING AMPLIFIER

(a) Remove the rear A/C amplifier with the connectors still connected.

(b) Turn ignition switch to ON.

(c) Measure voltage between terminals TINR (A32-8) and SG1 (A32-9) of the rear A/C amplifier connector at each temperature.

Standard voltage:

1.8 to 2.2 V at 25°C (77°F)

1.2 to 1.6 V at 40°C (104°F)

HINT:

  • As the temperature increases, the voltage decreases.
  • However, if DTC 26 is display, check and replace the rear A/C amplifier.
OK

REPLACE REAR AIR CONDITIONING AMPLIFIER

NG

2.

CHECK REAR INLET AIR TEMPERATURE SENSOR

(a) Disconnect the R26 rear inlet air temperature sensor connector.

(b) Measure resistance between terminals 1 and 2 of the rear inlet air temperature sensor connector at each temperature.

Standard resistance:

1.65 to 1.75 kΩ at 25°C (77°F)

0.55 to 0.65 kΩ at 50°C (122°F)

HINT:

  • As the temperature increases, the resistance decreases.
NG

REPLACE REAR INLET AIR TEMPERATURE SENSOR

OK

3.

CHECK WIRE HARNESS (SENSOR - AMPLIFIER)
NG

REPAIR OR REPLACE HARNESS AND CONNECTOR

OK

REPLACE REAR AIR CONDITIONING AMPLIFIER
