ON-VEHICLE INSPECTION
1. CHECK SLIDING ROOF REVERSE OPERATION DURING CLOSE OPERATION

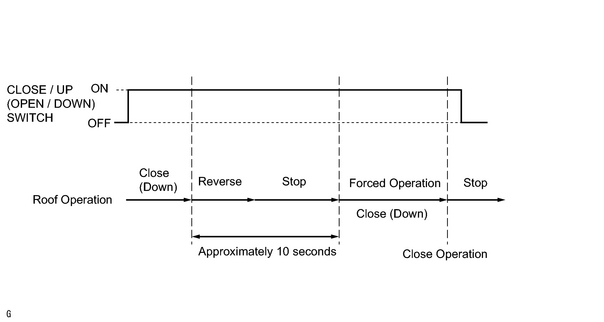

- *: Holding the CLOSE / UP (OPEN / DOWN) switch pressed inhibits the jam protection function at approximately 10 seconds after starting the reverse operation.
- If the switch remains pressed any longer, the sliding door starts close operation and it stops when detecting the fully closed position.
HINT:
At approximately 10 seconds after starting the reverse operation, it is switched to the forced close (down) operation.
|
|
