Title: SUSPENSION CONTROL: ACTIVE HEIGHT CONTROL SUSPENSION: Height Control Indicator Light Circuit; 2006 MY Land Cruiser [05/2005 - ] |
|
Height Control Indicator Light Circuit
|
DESCRIPTION
This indicator light is indicated the present vehicle height. The indicator light of the target vehicle height selected by the select switch is flashed while the height control is operated and waited.

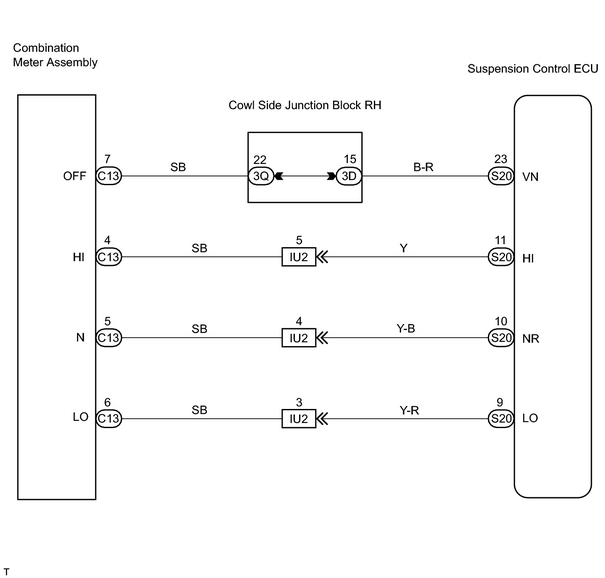

WIRING DIAGRAM
INSPECTION PROCEDURE
PROCEDURE
|
1.
|
CHECK COMBINATION METER ASSEMBLY (HEIGHT CONTROL INDICATOR LIGHT)
|
See combination meter troubleshooting
![2006 MY Land Cruiser [05/2005 - ]; METER: COMBINATION METER: ON-VEHICLE INSPECTION](../../../../stylegraphics/info.gif "2006 MY Land Cruiser [05/2005 - ]; METER: COMBINATION METER: ON-VEHICLE INSPECTION")
.
| NG |
|
REPLACE BULB OR, REPAIR OR REPLACE COMBINATION METER ASSEMBLY
|
| OK |
|
|
|
2.
|
CHECK WIRE HARNESS (COMBINATION METER ASSEMBLY (HEIGHT CONTROL INDICATOR) - SUSPENSION CONTROL ECU)
|
| NG |
|
REPAIR OR REPLACE HARNESS AND CONNECTOR
|
| OK |
|
REPLACE SUSPENSION CONTROL ECU
|
|
