Last Modified: 6-7-2017 6.8:8.0.40 Doc ID: RM00000279S000X
Model Year Start: 2006 Model: Land Cruiser Prod Date Range: [01/2006 -           ]
Title: SEAT BELT: FRONT SEAT INNER BELT ASSEMBLY: INSPECTION; 2006 MY Land Cruiser [01/2006 -        ]

INSPECTION

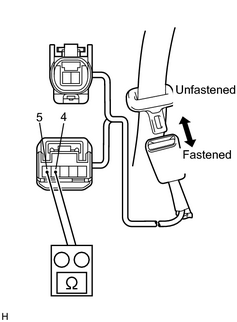

1. INSPECT FRONT SEAT INNER BELT ASSEMBLY (for Driver Side)

(a) Measure the resistance of the buckle switch.

Standard resistance:

Tester Connection

Condition

Specified Condition

4 - 5

Seat belt is unfastened

Below 1 Ω

4 - 5

Seat belt is fastened

1 MΩ or higher

If the result is not as specified, replace the belt assembly.
