| Last Modified: 6-7-2017 | 6.8:8.0.40 | Doc ID: RM0000010NG00EX |
| Model Year Start: 2007 | Model: Land Cruiser | Prod Date Range: [08/2006 - ] |
| Title: A750F AUTOMATIC TRANSMISSION: SHIFT LOCK SYSTEM: SYSTEM DIAGRAM; 2007 MY Land Cruiser [08/2006 - ] | ||

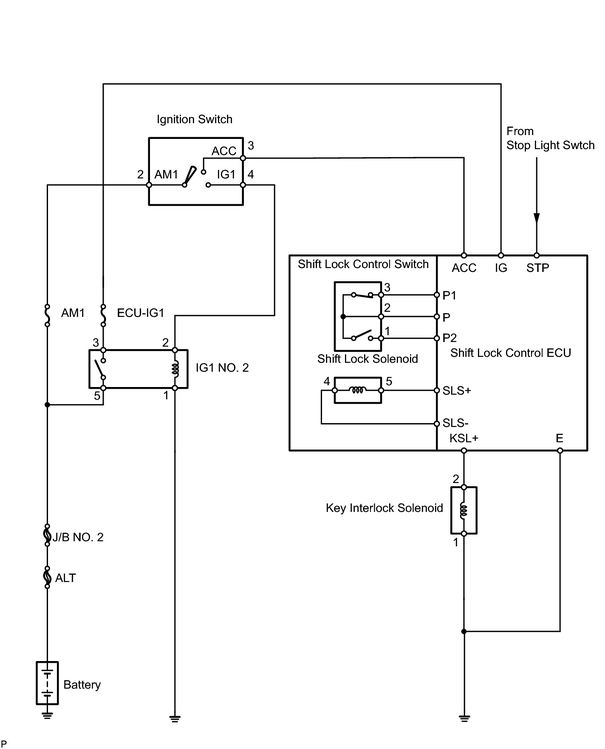

SYSTEM DIAGRAM
|
|
